0.69 Inch OLED Display Screen

Factory Costomized 0.69 Inch White OLED Display 96X16 Resolution 14-Pin Welding OLED Screen Monochrome Small Size

Module NO: RP069XJ-W-H14-03
Size: 0.69″
Resolution: 96*16 Pixels
Display Mode: OLED
Pin Number: 8/14 pin
Interface: IIC
Rohs: Yes
Driver IC: SSD1315/SSD1312

Reaperlcd offers a rich diversity of OLED/TFT/LCD/LCM and touch screens, we are sure to have the perfect fit for your application requirements.

Contact Us
Enquiry

Product Description

  • 0.69 inch OLED screen with black and white color display
    96×16 resolution for clear display and high contrast
    Large viewing angle: greater than 160° (one screen with the largest viewing angle in the display)
    Wide voltage supply (2.8~3.3V)
    IIC (Customizable FPC)
  • consumption: normal display is only 0.06W
    Military-grade process standards, long-term stable work
    Provide underlying driver technical support
ITEM STANDARD VALUES
OLED Size 0.69"
Resolution 96x16
Display Type OLED
Interface Type IIC
LCD Pin Number 14/8/4 pin
Module PCB Size 26.30x8.00 (Typ, mm)
Active Area 17.26x3.18 (Typ, mm)
Rohs Yes
Touch Screen Without
Driver IC SSD1315/SSD1312
Operating Voltage 2.8~3.3 V
Operating Temperature -20℃~70℃
Storage Temperature -30℃~80℃

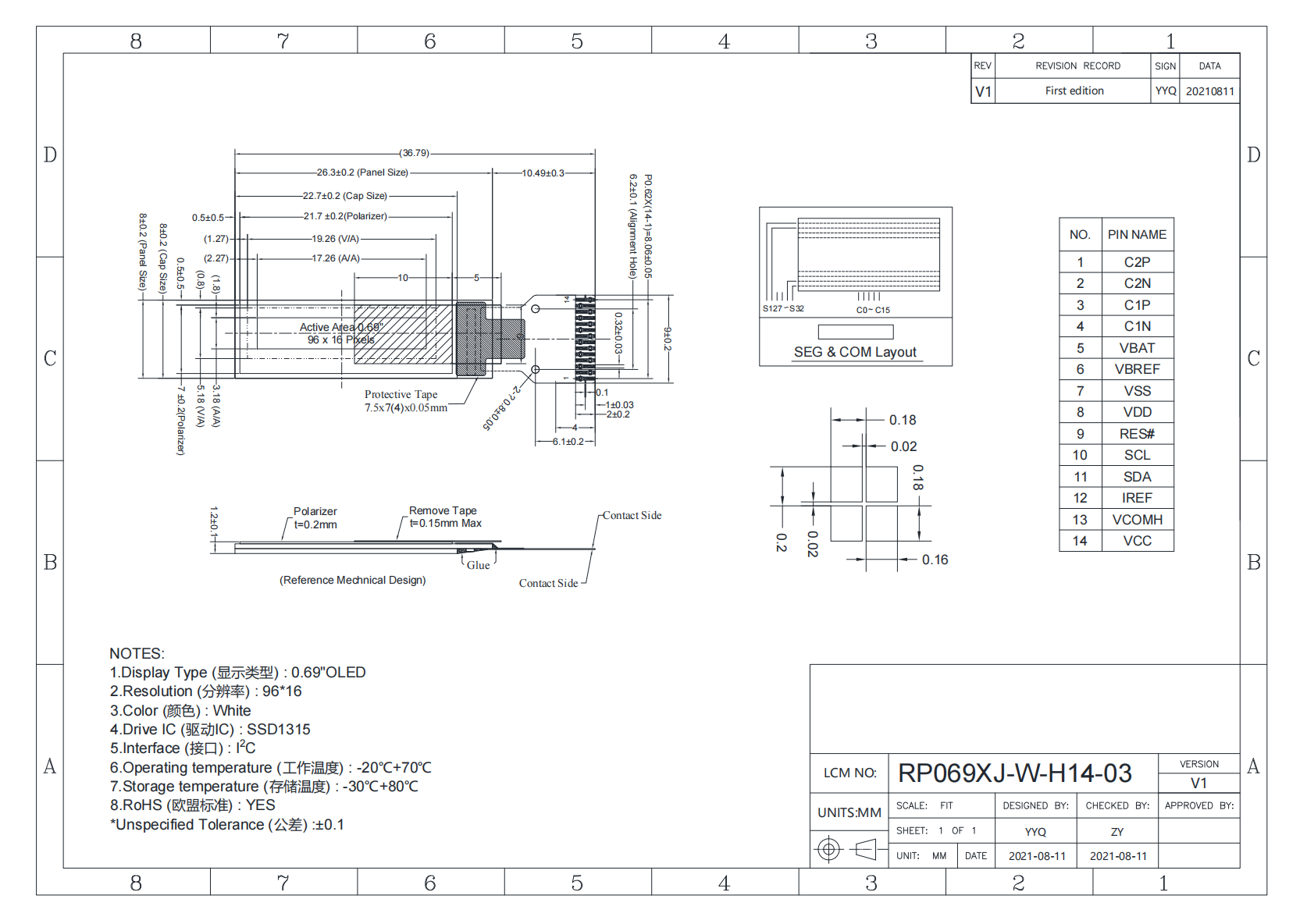

Product Structure

Custom Solution
Product Application

Key Features

The Reaper 0.69″ OLED Display Screen (Model: RPG069XJ-W-H14-03) is a black and white color display,Large viewing angle,wide voltage supply,IIC interface,low power consumption: normal display is only 0.06W,military-grade process standards, long-term stable work OLED screen.

·Size & Quality
A compact 0.69-inch screen with OLED screen, providing a high-quality display area of 17.26*3.18 mm.

·low power consumption
normal display is only 0.06W.

·Versatile Viewing
Full viewing angle for a consistent and color-accurate experience from any perspective.

·Touch Panel Technology
Optional resistive or projected capacitive (PCAP) touch screen, enhancing interactivity and usability.

·Durability
Operating temperatures range from -20 to +70ºC, ensuring reliable performance in various conditions.

Applications
Reaper’s advanced technology makes this display suitable for Industrial Equipment, Medical Devices, Home Intelligent Devices, Digital Consumers, Video Game Devices, and Instruments.

Brand Assurance
Reaper International Co., Ltd, with over a decade of expertise, specializes in LCD displays, offering customized solutions that cater to diverse needs.d
