0.69 Inch OLED Module

Factory Costomized 0.69 Inch White OLED Display 96X16 Resolution 4-Pin Welding OLED Module Monochrome Small Size

Module NO: RPGME06904WG01
Size: 0.69″
Resolution: 96*16 Pixels
Display Mode: OLED
Pin Number: 4 pin
Interface: IIC
Rohs: Yes
Driver IC: SSD1315

Reaperlcd offers a rich diversity of OLED/TFT/LCD/LCM and touch screens, we are sure to have the perfect fit for your application requirements.

Contact Us
Enquiry

Product Description

  • 0.69 inch OLED screen with black and white color display
    96×16 resolution for clear display and high contrast
    Large viewing angle: greater than 160° (one screen with the largest viewing angle in the display)
    Wide voltage supply (3~5V)
    IIC Interface(Customizable FPC)
  • consumption: normal display is only 0.06W
    Military-grade process standards, long-term stable work
    Provide underlying driver technical support
ITEM STANDARD VALUES
OLED Size 0.69"
Resolution 96x16
Display Type OLED
Interface Type IIC
LCD Pin Number 4 pin
Module PCB Size 32.50x10.00 (Typ, mm)
Active Area 17.26x3.18 (Typ, mm)
Rohs Yes
Touch Screen Without
Driver IC SSD1315
Operating Voltage 3~5 V
Operating Temperature -20℃~70℃
Storage Temperature -30℃~80℃

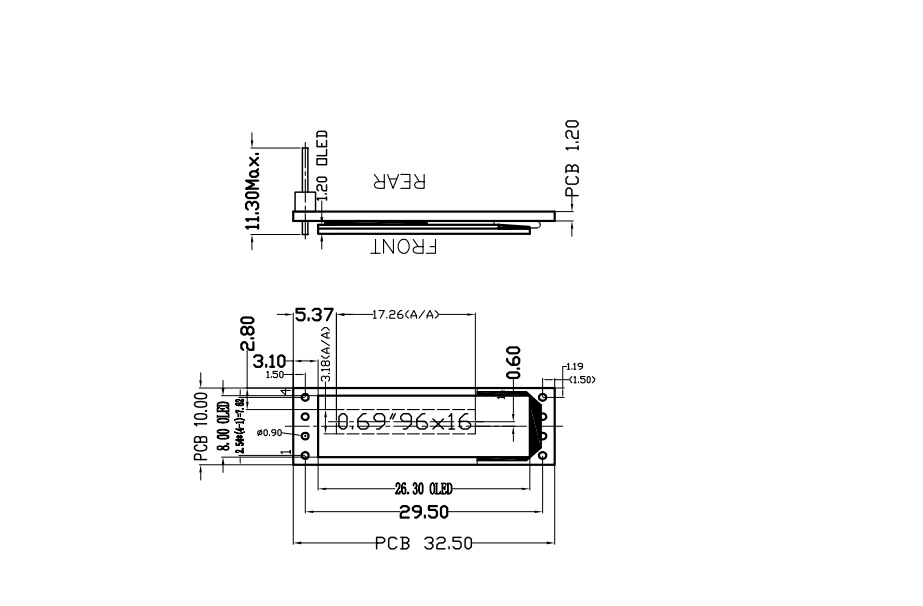

Product Structure

Custom Solution
Product Application

Key Features

The Reaper 0.69″ OLED Module (Model: RPGME06904WG01) is a black and white color display,Large viewing angle,wide voltage supply,IIC interface,low power consumption: normal display is only 0.06W,military-grade process standards, long-term stable work OLED screen.

·Size & Quality
A compact 0.69-inch screen with OLED screen, providing a high-quality display area of 17.26*3.18 mm.

·low power consumption
normal display is only 0.06W.

·Versatile Viewing
Full viewing angle for a consistent and color-accurate experience from any perspective.

·Touch Panel Technology
Optional resistive or projected capacitive (PCAP) touch screen, enhancing interactivity and usability.

·Durability
Operating temperatures range from -20 to +70ºC, ensuring reliable performance in various conditions.

Applications
Reaper’s advanced technology makes this display suitable for Industrial Equipment, Medical Devices, Home Intelligent Devices, Digital Consumers, Video Game Devices, and Instruments.
