0.72 Inch Bar LCD Display
Small bar TFT LCD screen 0.72 inch GC9D01 60*160 SPI interface LCD display
Module NO: RP072BB-C08-02
Size: 0.72″
Resolution: 60*160 Pixels
Display Mode: IPS
Brightness: 350 Nits
Interface: 4-Wire SPI Interface
Display Color: RGB 262K color
Driver IC: GC9D01
Reaperlcd offers a rich diversity of TFT/LCD/LCM and touch screens, we are sure to have the perfect fit for your application requirements.
Product Description
- 1,The full name of TFT is Thin Film Transistor. Each pixel on TFT display is driven by a thin film transistor, The TFT display is a type of active matrix liquid crystal display device.2, TFT display module is composed of a TFT LCD panel, driver IC, FPC and backlight unit.3, The luminance of display module could be customized as per your requirements.4, Capacitive & Resistive touch panel is available for your optional.5, It’s Standard and Ready-made TFT LCD Module.6, We have professional and experienced team to make custom solution base on your design.
| ITEM | STANDARD VALUES |
|---|---|
| LCD Size | 0.72" |
| Resolution | 60x160 |
| TFT Type | IPS |
| Interface Type | 4-wire SPI interface |
| LCD Pin Number | 8/13 pin |
| Module PCB Size | 8.52x21.70 (Typ, mm) |
| Active Area | 6.41x17.09 (Typ, mm) |
| Brightness | 350 Nits (Optional) |
| Touch Screen | Optional(Capacitive Touch Screen) |
| Driver IC | GC9D01 |
| Operating Voltage | 2.8~3.3V |
| Operating Temperature | -20℃~60℃ |
| Storage Temperature | -30℃~70℃ |

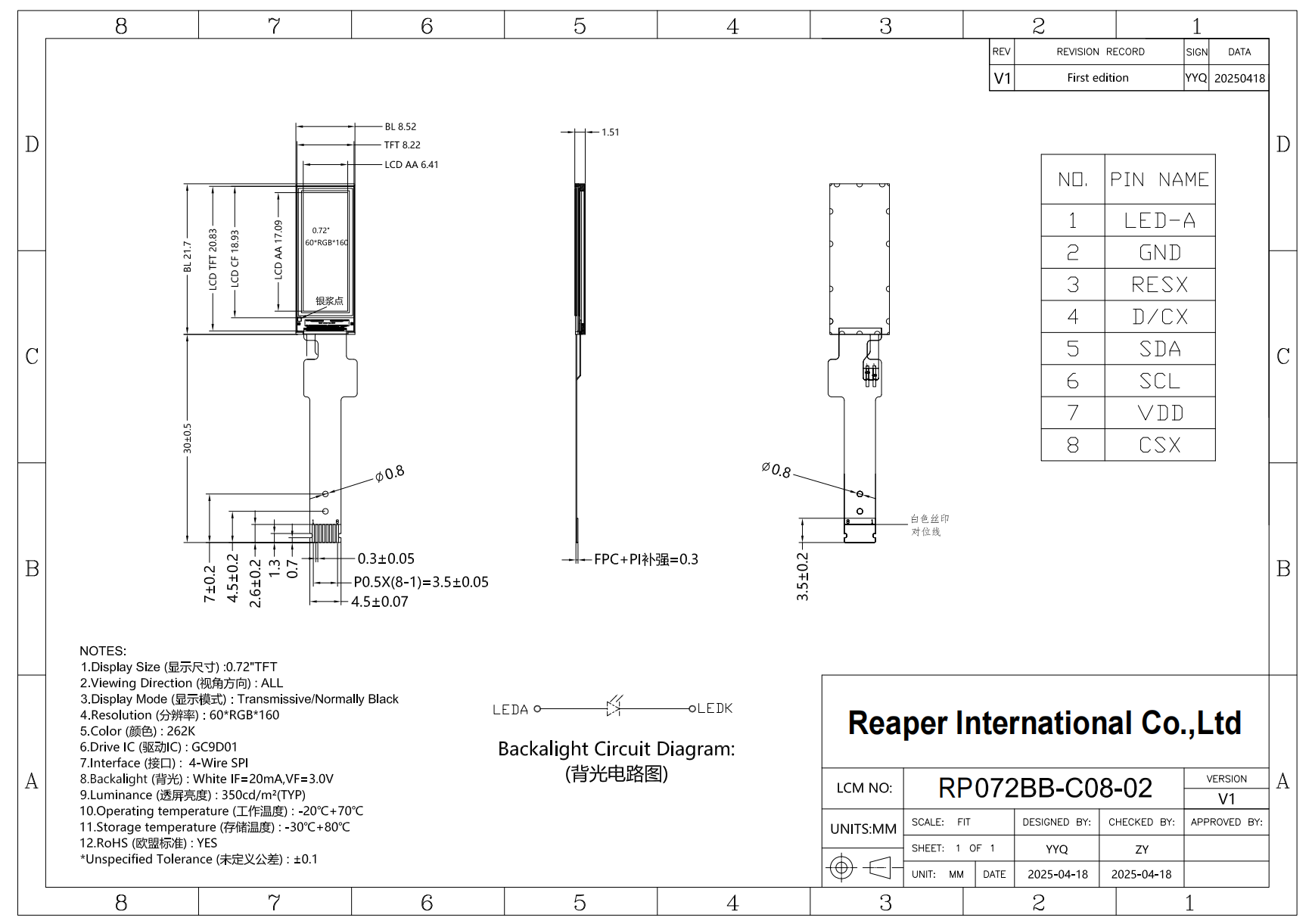

Product Structure
Key Features
The Reaper 0.72″ LCD Display (Model: RP072BB-C08-02) is a Standard and Ready-made TFT LCD Display,TFT LCD display is composed of a TFT LCD panel, driver IC, FPC and backlight unit,The luminance of display module could be customized as per your requirements,Capacitive & Resistive touch panel is available for your optional.
·Size & Quality
A compact 0.72-inch screen with TFT transmissive technology, providing a high-quality display area of 6.41*17.09 mm.
·High Brightness
With 1000 nits brightness, the display is clearly visible even in well-lit environments, making it ideal for outdoor and industrial use.
·Versatile Viewing
Full viewing angle for a consistent and color-accurate experience from any perspective.
·Touch Panel Technology
Optional resistive or projected capacitive (PCAP) touch screen, enhancing interactivity and usability.
·Durability
Operating temperatures range from -20 to +70ºC, ensuring reliable performance in various conditions.
Applications
Reaper’s advanced technology makes this display suitable for Industrial Equipment, Medical Devices, Home Intelligent Devices, Digital Consumers, Video Game Devices, and Instruments.
Brand Assurance
Reaper International Co., Ltd, with over a decade of expertise, specializes in LCD displays, offering customized solutions that cater to diverse needs.
