1.09 Inch OLED Module
Factory 1.09 Inch 64×128 White Color OLED Display SSD1312 Drive IC Spi Iic Interface OLED Module
Module NO: RP109-02-04-WB
Size: 1.09″
Resolution: 64*128 Pixels
Display Mode: OLED
Pin Number: 4 pin
Interface: IIC
Rohs: Yes
Driver IC: SSD1312
Reaperlcd offers a rich diversity of OLED/TFT/LCD/LCM and touch screens, we are sure to have the perfect fit for your application requirements.
Product Description
- 1.09 inch OLED module with white and black color display64×128 resolution for clear display and high contrastLarge viewing angle: greater than 160° (one screen with the largest viewing angle in the display)Wide voltage supply (3~5V)IIC Interface (Customizable FPC)
- consumption: normal display is only 0.06WMilitary-grade process standards, long-term stable workProvide underlying driver technical support
| ITEM | STANDARD VALUES |
|---|---|
| OLED Size | 1.09" |
| Resolution | 64x128 |
| Display Type | OLED |
| Interface Type | IIC |
| LCD Pin Number | 4 pin |
| Module PCB Size | 14.73x35.81 (Typ, mm) |
| Active Area | 10.86x25.58(Typ, mm) |
| Rohs | Yes |
| Touch Screen | Without |
| Driver IC | SSD1312 |
| Operating Voltage | 3~5 V |
| Operating Temperature | -20℃~70℃ |
| Storage Temperature | -30℃~85℃ |

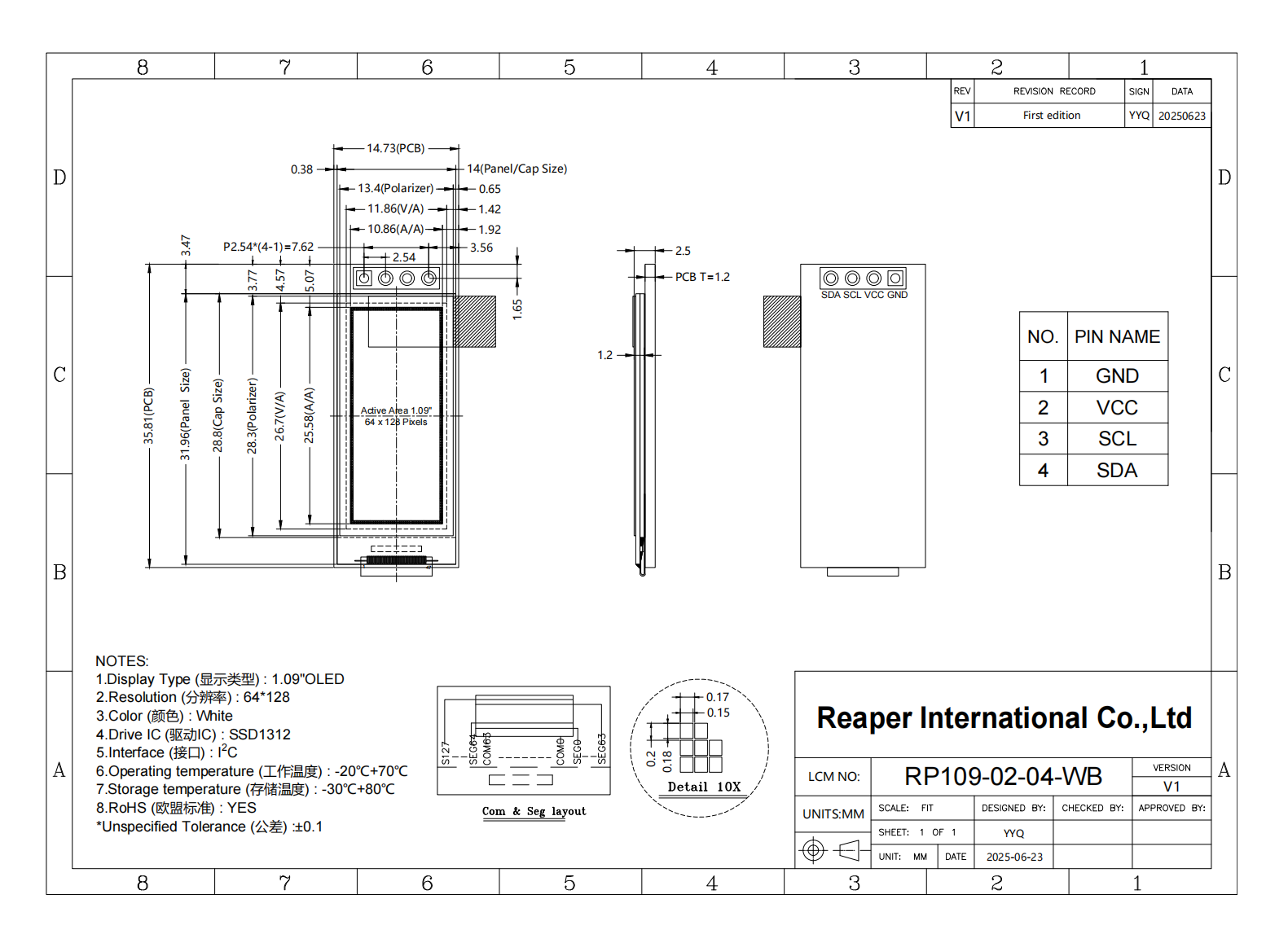

Product Structure
Key Features
The Reaper 1.09″ OLED Module (Model: RP109-02-04-WB) is a white and black color display,Large viewing angle,wide voltage supply,IIC interface,low power consumption: normal display is only 0.06W,military-grade process standards, long-term stable work OLED screen.
·Size & Quality
A compact 1.09-inch screen with OLED screen, providing a high-quality display area of 10.86*25.58 mm.
·low power consumption
normal display is only 0.06W.
·Versatile Viewing
Full viewing angle for a consistent and color-accurate experience from any perspective.
·Touch Panel Technology
Optional resistive or projected capacitive (PCAP) touch screen, enhancing interactivity and usability.
·Durability
Operating temperatures range from -20 to +70ºC, ensuring reliable performance in various conditions.
Applications
Reaper’s advanced technology makes this display suitable for Industrial Equipment, Medical Devices, Home Intelligent Devices, Digital Consumers, Video Game Devices, and Instruments.
Brand Assurance
Reaper International Co., Ltd, with over a decade of expertise, specializes in LCD displays, offering customized solutions that cater to diverse needs.d
