1.1 Inch OLED Display Screen

Square Monochrome OLED 1.1 Inch 96×96 SH1107 I2C/SPI Interface High Quality OLED Display Screen



Module NO: RP110XD-W-C10-01
Size: 1.1″
Resolution: 96*96 Pixels
Display Mode: OLED
Pin Number: 4/7/10/24 pin
Interface: IIC/SPI
Rohs: Yes
Driver IC: SH1107

Reaperlcd offers a rich diversity of OLED/TFT/LCD/LCM and touch screens, we are sure to have the perfect fit for your application requirements.

Contact Us
Enquiry

Product Description

  • 1.1 inch OLED screen with white and black color display
    96×96 resolution for clear display and high contrast
    Large viewing angle: greater than 160° (one screen with the largest viewing angle in the display)
    Wide voltage supply (2.8~3.3V)
    IIC/SPI Interface (Customizable FPC)
  • consumption: normal display is only 0.06W
    Military-grade process standards, long-term stable work
    Provide underlying driver technical support
ITEM STANDARD VALUES
OLED Size 1.1"
Resolution 96x96
Display Type OLED
Interface Type IIC/SPI
LCD Pin Number 4/7/10/24 pin
Module PCB Size 25.49x29.10 (Typ, mm)
Active Area 19.65x19.65(Typ, mm)
Rohs Yes
Touch Screen Without
Driver IC SH1107
Operating Voltage 2.8~3.3 V
Operating Temperature -20℃~70℃
Storage Temperature -30℃~85℃

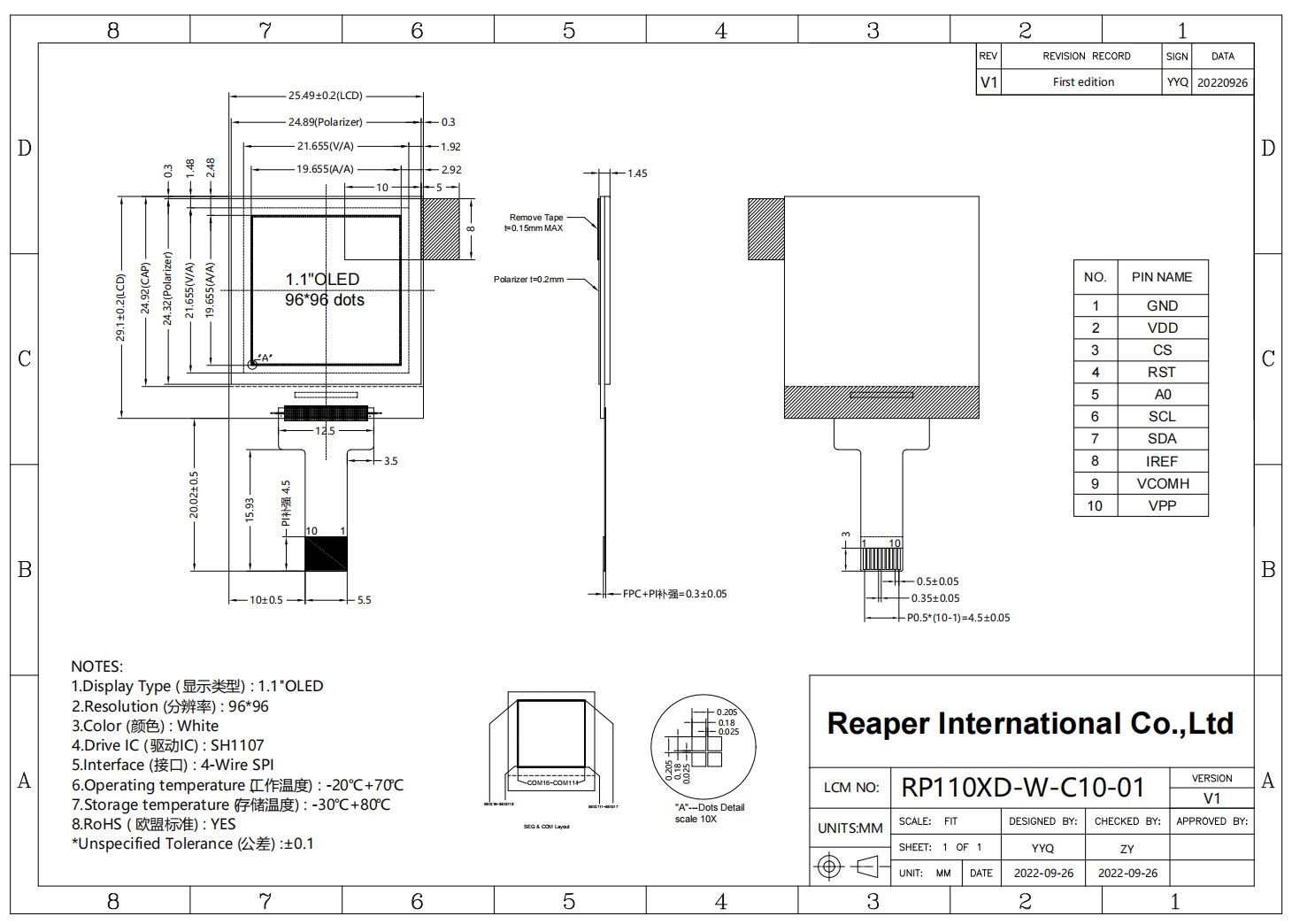

Product Structure

Custom Solution
Product Application

Key Features

The Reaper 1.1″ OLED Display Screen (Model: RP110XD-W-C10-01) is a white and black color display,Large viewing angle,wide voltage supply,IIC/SPI interface,low power consumption: normal display is only 0.06W,military-grade process standards, long-term stable work OLED screen.

·Size & Quality
A compact 1.1-inch screen with OLED screen, providing a high-quality display area of 19.65*19.65 mm.

·low power consumption
normal display is only 0.06W.

·Versatile Viewing
Full viewing angle for a consistent and color-accurate experience from any perspective.

·Touch Panel Technology
Optional resistive or projected capacitive (PCAP) touch screen, enhancing interactivity and usability.

·Durability
Operating temperatures range from -20 to +70ºC, ensuring reliable performance in various conditions.

Applications
Reaper’s advanced technology makes this display suitable for Industrial Equipment, Medical Devices, Home Intelligent Devices, Digital Consumers, Video Game Devices, and Instruments.

Brand Assurance
Reaper International Co., Ltd, with over a decade of expertise, specializes in LCD displays, offering customized solutions that cater to diverse needs.d
