1.3 Inch SPI Round LCD Module
1.3 Inch 240*240 Round LCD Screen 4-line SPI Serial Port Interface with Board LCD Module
Module NO: RPMSP1281
Size: 1.28″
Resolution: 240*240 Pixels
Display Mode: IPS
Brightness: 330 Nits
Interface: 4-line SPI interface
Display Color: RGB 65K color
Driver IC: GC9A01
Reaperlcd offers a rich diversity of TFT/LCD/LCM and touch screens, we are sure to have the perfect fit for your application requirements.
Product Description
- 1.28-inch round IPS color screen,support 65K color display,display rich colors
- 240X240 resolution, clear display
- IPS full view panel, super wide visual range
- Using the 4-line-SPI serial bus, it only takes a few IOs to illuminate the display
- Provide a rich Arduino, STM32, C51 and MSP430 sample program
- Military-grade process standards, long-term stable work
- Provide underlying driver technical support
| ITEM | STANDARD VALUES |
|---|---|
| LCD Size | 1.28" |
| Resolution | 240x240 |
| TFT Type | IPS |
| Interface Type | 4-line SPI interface |
| LCD Pin Number | 8pin |
| Module PCB Size | 38.03x45.80 (Typ, mm) |
| Active Area | Diameter: 32.40 (mm) |
| Brightness | 330 Nits (Optional) |
| Touch Screen | without |
| Driver IC | GC9A01 |
| Operating Voltage | 3.3V |
| Operating Temperature | -20℃~60℃ |
| Storage Temperature | -30℃~70℃ |

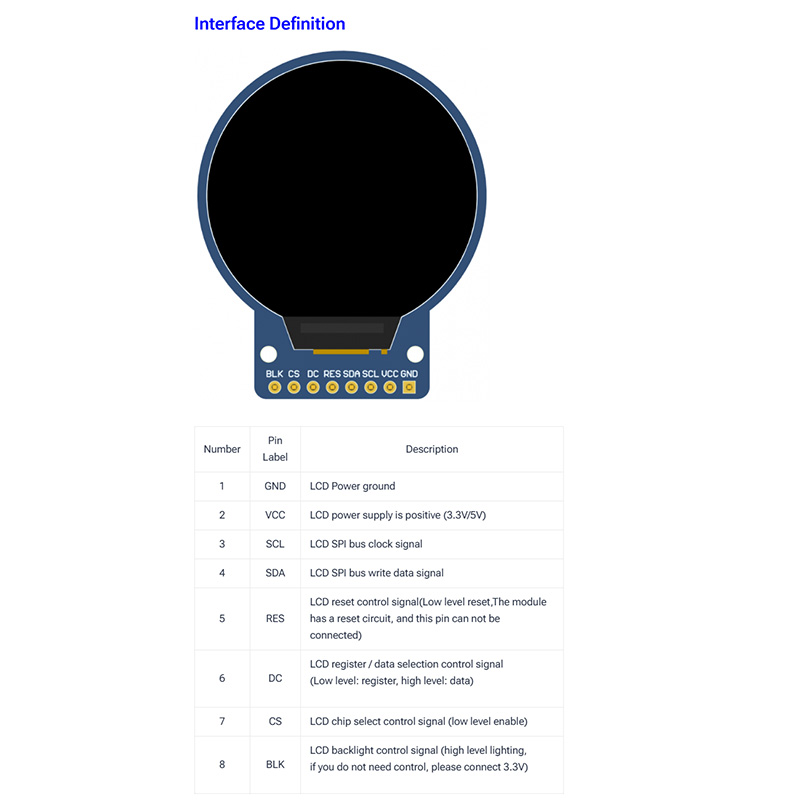

Pin Definition
Product Structure
Key Features
The Reaper 1.28″ SPI LCD Display (Model: RPMSP1281) is a Using the 4-line-SPI serial bus, it only takes a few IOs to illuminate the display,Provide a rich Arduino, STM32, C51 and MSP430 sample program,Provide underlying driver technical support.
·Size & Quality
A compact 1.28-inch screen with TFT transmissive technology, providing a high-quality display area of 32.40×32.40 mm.
·Easy to operate
Provide a rich Arduino, STM32, C51 and MSP430 sample program,Provide underlying driver technical support.
·Versatile Viewing
Full viewing angle for a consistent and color-accurate experience from any perspective.
·Touch Panel Technology
Optional resistive or projected capacitive (PCAP) touch screen, enhancing interactivity and usability.
·Durability
Operating temperatures range from -20 to +70ºC, ensuring reliable performance in various conditions.
Applications
Reaper’s advanced technology makes this display suitable for Industrial Equipment, Medical Devices, Home Intelligent Devices, Digital Consumers, Video Game Devices, and Instruments.
