1.44 Inch SPI LCD Module
Industrial LCD Module 1.44 Inch 128*128 St7735s Spi Serial Port Color TFT LCD Display
Module NO: RPMSP1443
Size: 1.44″
Resolution: 128*128 Pixels
Display Mode: TN
Brightness: 280 Nits
Interface: 4-line SPI interface
Display Color: RGB 65K color
Driver IC: ST7735S
Reaperlcd offers a rich diversity of TFT/LCD/LCM and touch screens, we are sure to have the perfect fit for your application requirements.
Product Description
- 1.44-inch color screen,support 65K color display,display rich colors
- 128X128 resolution, clear display
- Using the SPI serial bus, it only takes a few IOs to illuminate the display
- Easy to expand the experiment with SD card slot
- Provide a rich sample program
- Military-grade process standards, long-term stable work
- Provide underlying driver technical support
| ITEM | STANDARD VALUES |
|---|---|
| LCD Size | 1.44" |
| Resolution | 128x128 |
| TFT Type | TN |
| Interface Type | 4-line SPI interface |
| LCD Pin Number | 8pin |
| Module PCB Size | 29.7x43.36 (Typ, mm) |
| Active Area | 26.2x27.2 (mm) |
| Brightness | 280 Nits (Optional) |
| Touch Screen | without |
| Driver IC | ST7735S |
| Operating Voltage | 3.3V |
| Operating Temperature | -20℃~60℃ |
| Storage Temperature | -30℃~70℃ |

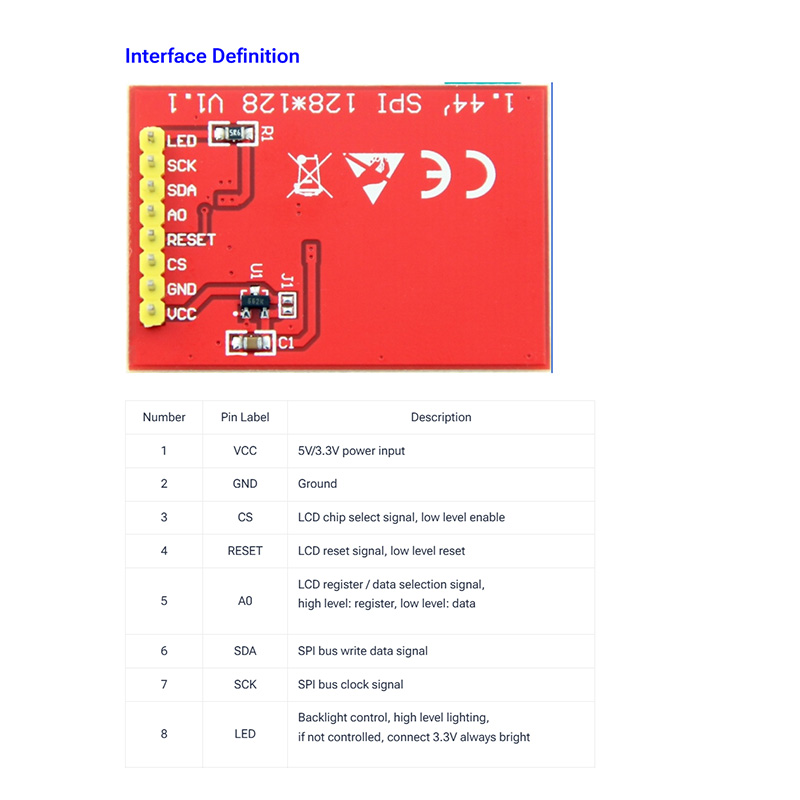

Pin Definition

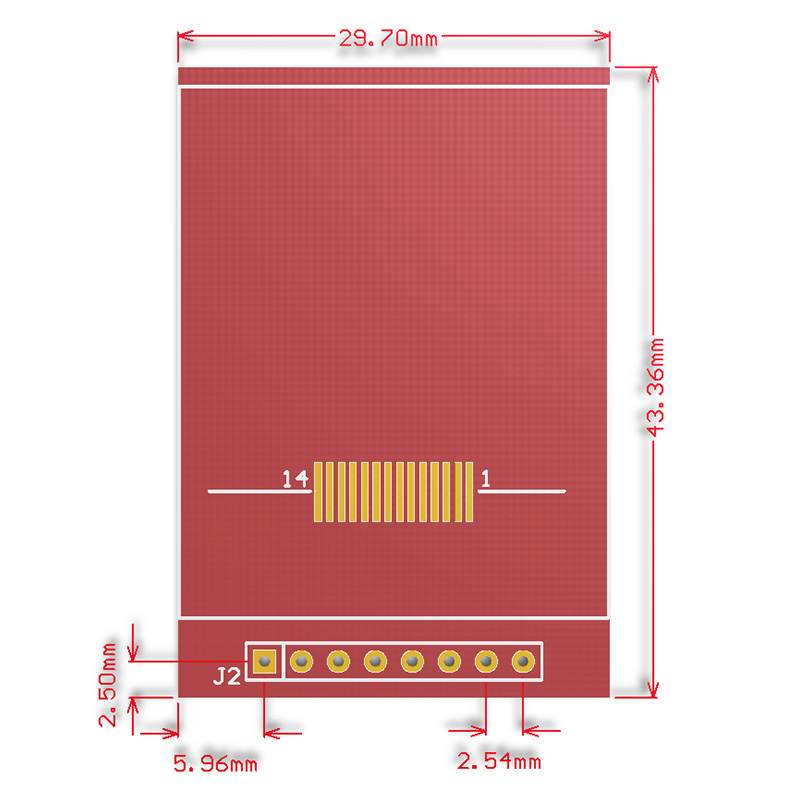

Product Structure
Key Features
The Reaper 1.44″ SPI LCD Display (Model: RPMSP1443) is a Using the SPI serial bus, it only takes a few IOs to illuminate the display,Easy to expand the experiment with SD card slot,Provide a rich sample program,Provide underlying driver technical support.
·Size & Quality
A compact 1.44-inch screen with TFT transmissive technology, providing a high-quality display area of 26.2×27.2 mm.
·Easy to operate
Provide a rich sample program,Provide underlying driver technical support..
·Versatile Viewing
Full viewing angle for a consistent and color-accurate experience from any perspective.
·Touch Panel Technology
Optional resistive or projected capacitive (PCAP) touch screen, enhancing interactivity and usability.
·Durability
Operating temperatures range from -20 to +70ºC, ensuring reliable performance in various conditions.
Applications
Reaper’s advanced technology makes this display suitable for Industrial Equipment, Medical Devices, Home Intelligent Devices, Digital Consumers, Video Game Devices, and Instruments.
Brand Assurance
Reaper International Co., Ltd, with over a decade of expertise, specializes in LCD displays, offering customized solutions that cater to diverse needs.
