1.9 Inch SPI LCD Module
High Quality 1.9 Inch Spi Serial Port 170*320 IPS TFT LCD Module Display
Module NO: RPMSP1901
Size: 1.9″
Resolution: 170*320 Pixels
Display Mode: IPS
Brightness: 480 Nits
Interface: 4-line SPI interface
Display Color: RGB 65K color
Driver IC: ST7789
Reaperlcd offers a rich diversity of TFT/LCD/LCM and touch screens, we are sure to have the perfect fit for your application requirements.
Product Description
- 1.9-inch color screen,support 65K color display,display rich colors
- 170X320 resolution, clear display
- IPS full view panel, super wide visual range
- Using the 4-line-SPI serial bus, it only takes a few IOs to illuminate the display
- Provide a rich STM32, C51 and MSP430 sample program
- Military-grade process standards, long-term stable work
- Provide underlying driver technical support
| ITEM | STANDARD VALUES |
|---|---|
| LCD Size | 1.9" |
| Resolution | 170x320 |
| TFT Type | IPS |
| Interface Type | 4-wire SPI interface |
| LCD Pin Number | 8pin |
| Module PCB Size | 29.00x62.00 (Typ, mm) |
| Active Area | 22.695x42.72 (mm) |
| Brightness | 480 Nits (Optional) |
| Touch Screen | without |
| Driver IC | ST7789 |
| Operating Voltage | 3.3V |
| Operating Temperature | -20℃~60℃ |
| Storage Temperature | -30℃~70℃ |

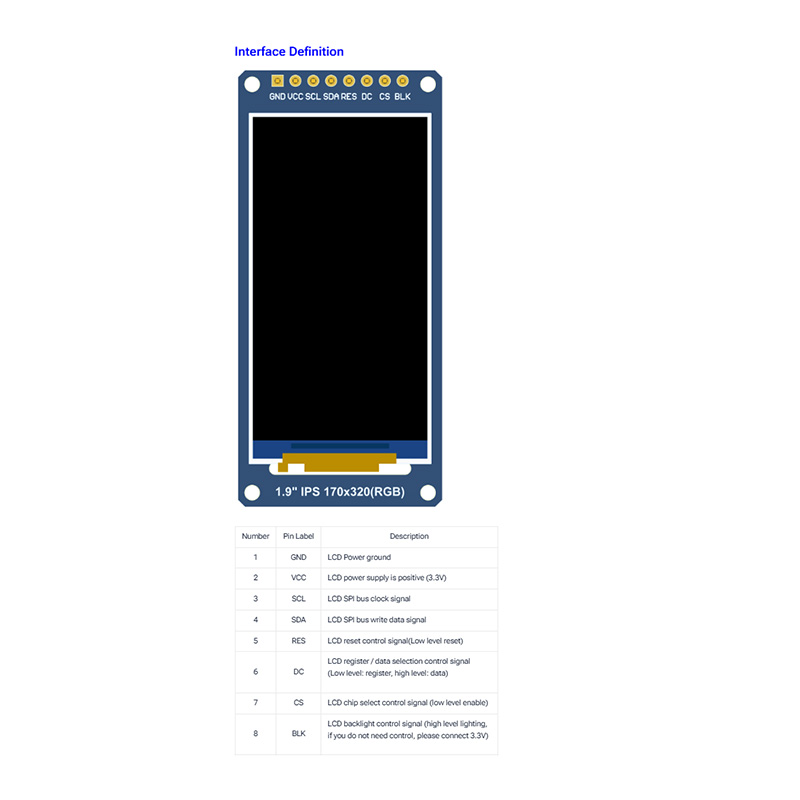

Pin Definition
Product Structure
Key Features
The Reaper 1.9″ SPI LCD Display (Model: RPMSP1901) is a Using the 4-line-SPI serial bus, it only takes a few IOs to illuminate the display,Provide a rich STM32, C51 and MSP430 sample program,Provide underlying driver technical support.
·Size & Quality
A compact 1.9-inch screen with TFT transmissive technology, providing a high-quality display area of 22.695×42.72 mm.
·Easy to operate
Provide a rich STM32, C51 and MSP430 sample program,Provide underlying driver technical support.
·Versatile Viewing
Full viewing angle for a consistent and color-accurate experience from any perspective.
·Touch Panel Technology
Optional resistive or projected capacitive (PCAP) touch screen, enhancing interactivity and usability.
·Durability
Operating temperatures range from -20 to +70ºC, ensuring reliable performance in various conditions.
Applications
Reaper’s advanced technology makes this display suitable for Industrial Equipment, Medical Devices, Home Intelligent Devices, Digital Consumers, Video Game Devices, and Instruments.
