2.0 Inch SPI LCD Module
Industrial 2.0 Inch Spi Serial Port 2inch 240*320 IPS LCD Module Display
Module NO: RPMSP2008
Size: 2.0″
Resolution: 320*240 Pixels
Display Mode: IPS
Brightness: 340 Nits
Interface: 4-line SPI interface
Display Color: RGB 65K color
Driver IC: ST7789
Reaperlcd offers a rich diversity of TFT/LCD/LCM and touch screens, we are sure to have the perfect fit for your application requirements.
Product Description
- 2.0-inch color screen,support 65K color display,display rich colors
- 320X240 resolution, clear display
- IPS full view panel, super wide visual range
- Using the 4-line-SPI serial bus, it only takes a few IOs to illuminate the display
- Provide a rich STM32, C51 and MSP430 sample program
- Military-grade process standards, long-term stable work
- Provide underlying driver technical support
| ITEM | STANDARD VALUES |
|---|---|
| LCD Size | 2.0" |
| Resolution | 320x240 |
| TFT Type | IPS |
| Interface Type | 4-line SPI interface |
| LCD Pin Number | 8pin |
| Module PCB Size | 36.48x61.12 (Typ, mm) |
| Active Area | 30.60x40.80 (mm) |
| Brightness | 340 Nits (Optional) |
| Touch Screen | without |
| Driver IC | ST7789 |
| Operating Voltage | 3.3V |
| Operating Temperature | -20℃~60℃ |
| Storage Temperature | -30℃~70℃ |

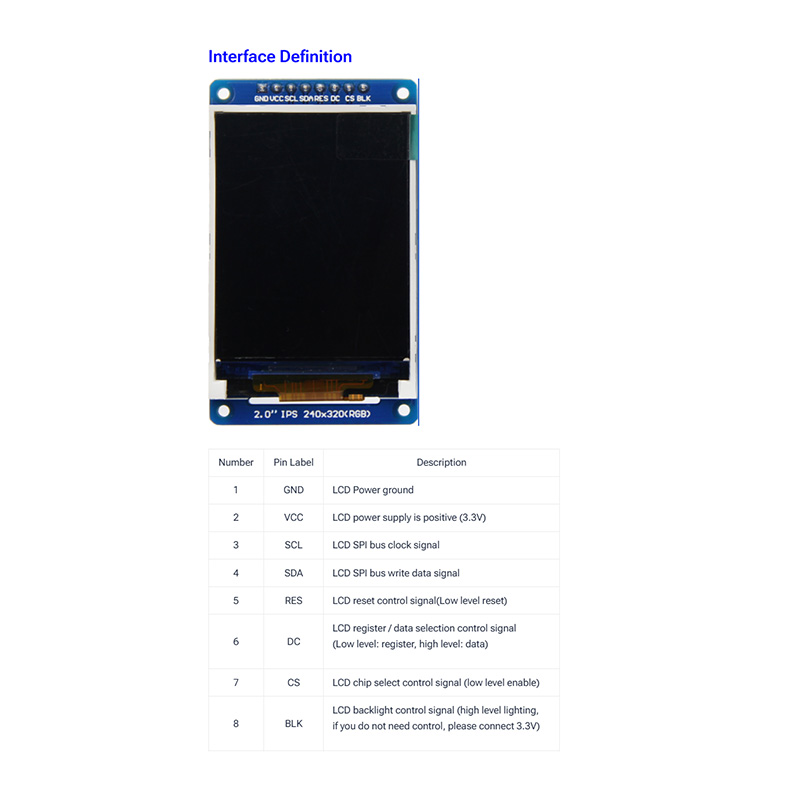

Pin Definition
Product Structure
Key Features
The Reaper 2.0″ SPI LCD Display (Model: RPMSP2008) is a Using the 4-line-SPI serial bus, it only takes a few IOs to illuminate the display,Provide a rich STM32, C51 and MSP430 sample program,Provide underlying driver technical support.
·Size & Quality
A compact 2.0-inch screen with TFT transmissive technology, providing a high-quality display area of 30.60×40.80 mm.
·Easy to operate
Provide a rich STM32, C51 and MSP430 sample program,Provide underlying driver technical support.
·Versatile Viewing
Full viewing angle for a consistent and color-accurate experience from any perspective.
·Touch Panel Technology
Optional resistive or projected capacitive (PCAP) touch screen, enhancing interactivity and usability.
·Durability
Operating temperatures range from -20 to +70ºC, ensuring reliable performance in various conditions.
Applications
Reaper’s advanced technology makes this display suitable for Industrial Equipment, Medical Devices, Home Intelligent Devices, Digital Consumers, Video Game Devices, and Instruments.
Brand Assurance
Reaper International Co., Ltd, with over a decade of expertise, specializes in LCD displays, offering customized solutions that cater to diverse needs.
