2.4 Inch Arduino UNO LCD Display
2.4 Inch 8 Bit Parallel Bus TFT LCD Display Module Driver IC Ili9341 320X240 Resolution LCD Screen for Arduino Uno/Mega2560
Module NO: RPMAR2406
Size: 2.4″
Resolution: 320*240 Pixels
Display Mode: TN/IPS
Brightness: 500 Nits
Interface: 8-bit parallel interface
Display Color: RGB 65K color
Driver IC: ILI9341
Reaperlcd offers a rich diversity of TFT/LCD/LCM and touch screens, we are sure to have the perfect fit for your application requirements.
Product Description
- Supports development boards such as Arduino UNO and Mega2560 for plug-in use without wiring
- 320*240 resolution, clear display, support for touch function
- Support 16-bit RGB 65K color display, display rich colors
- 8-bit parallel bus, faster than serial SPI refresh
- On-board 5V/3.3V level shifting IC, compatible with 5V/3.3V operating voltage
- Easy to expand the experiment with SD card slot
- Provides an Arduino library with a rich sample program
- Military-grade process standards, long-term stable work
- Provide underlying driver technical support
| ITEM | STANDARD VALUES |
|---|---|
| LCD Size | 2.4" |
| Resolution | 320x240 |
| TFT Type | TN/IPS |
| Interface Type | 8-bit parallel interface |
| LCD Pin Number | 20pin |
| Module PCB Size | 72.20x52.70 (Typ, mm) |
| Active Area | 48.96x36.72 (Typ, mm) |
| Brightness | 500 Nits (Optional) |
| Touch Screen | Resistive Touch Screen (Optional) |
| Driver IC | ILI9341 |
| Operating Voltage | 5V/3.3V |
| Operating Temperature | -20℃~60℃ |
| Storage Temperature | -30℃~70℃ |

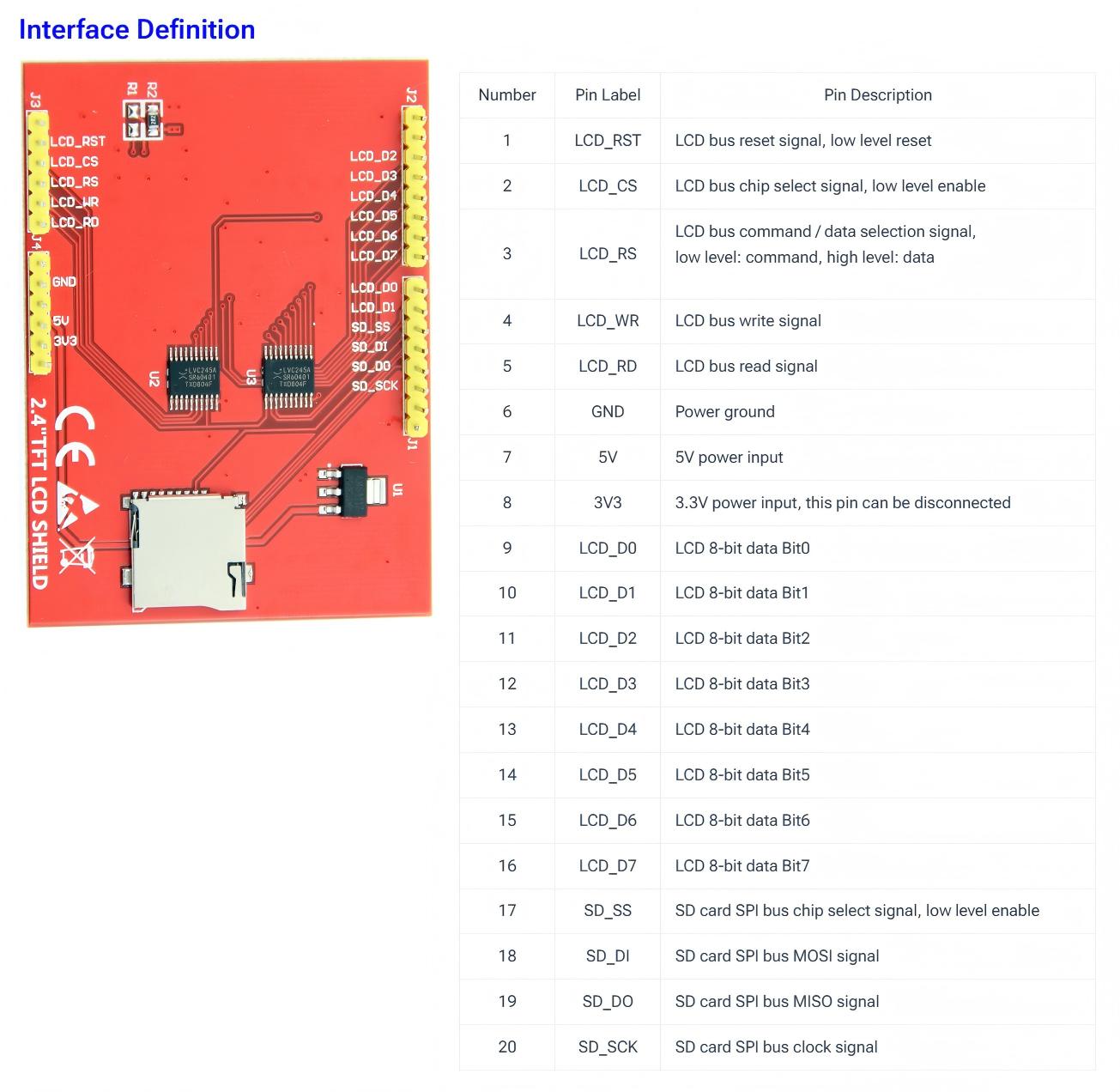

Pin Definition

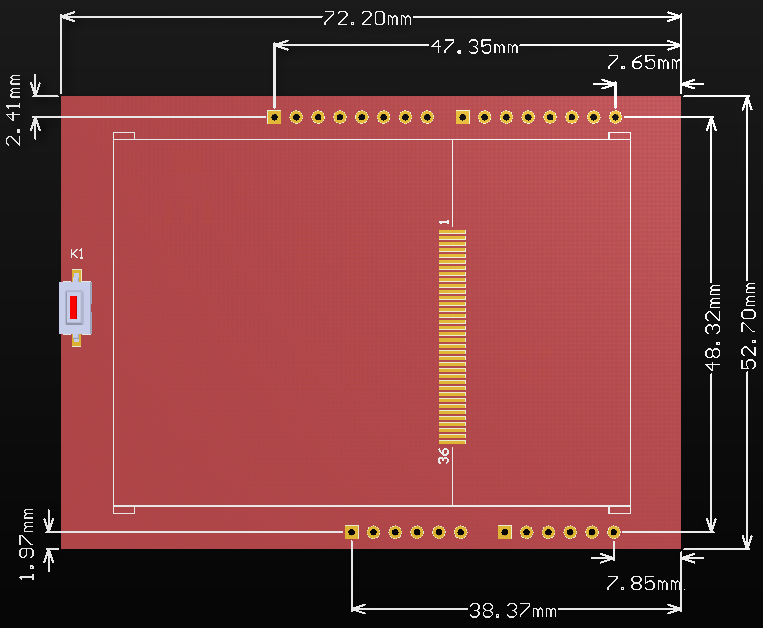

Product Structure
Key Features
The Reaper 2.4″ Arduino UNO LCD Display (Model: RPMAR2406) is a Supports development boards such as Arduino UNO and Mega2560 for plug-in use without wiring,Easy to expand the experiment with SD card slot,Provides an Arduino library with a rich sample program,Provide underlying driver technical support.
·Size & Quality
A compact 2.4-inch screen with TFT transmissive technology, providing a high-quality display area of 48.96×36.72 mm.
·Easy to operate
Support Arduino Mage2560 direct plug-in use,Provides an Arduino library with a rich sample program,Provide underlying driver technical support.
·Versatile Viewing
Full viewing angle for a consistent and color-accurate experience from any perspective.
·Touch Panel Technology
Optional resistive or projected capacitive (PCAP) touch screen, enhancing interactivity and usability.
·Durability
Operating temperatures range from -20 to +70ºC, ensuring reliable performance in various conditions.
Applications
Reaper’s advanced technology makes this display suitable for Industrial Equipment, Medical Devices, Home Intelligent Devices, Digital Consumers, Video Game Devices, and Instruments.
Brand Assurance
Reaper International Co., Ltd, with over a decade of expertise, specializes in LCD displays, offering customized solutions that cater to diverse needs.
