2.4 Inch RPI LCD Display
2.4inch Rpi LCD Display of 320X240 Spi Interface with Resistive Touch Screen for Raspberry 3A+
Module NO: RPMPI2411
Size: 2.4″
Resolution: 320*240 Pixels
Display Mode: IPS
Brightness: 300 Nits
Interface: SPI
Display Color: 262K
Driver IC: ILI9341
Reaperlcd offers a rich diversity of TFT/LCD/LCM and touch screens, we are sure to have the perfect fit for your application requirements.
Product Description
- 2.4inch standard display with physical resolution of 320×240
- SPI interface with resistive touch screen for touch control
- perfectly compatible and can be directly inserted into any version of the Raspberry Pi (Raspberry Pi ZeroW, A, A+, B, B+, 2B, 3B, 3B+)
- Support for Raspbian/Ubuntu/Kali systems, Provide driver, image, and online wiki guidance documents
- This product has passed CE and RoHS certification
| ITEM | STANDARD VALUES |
|---|---|
| LCD Size | 2.4" |
| Resolution | 320x240 |
| TFT Type | IPS |
| Interface Type | SPI |
| LCD Driver IC | ILI9341 |
| Module PCB Size | 65(W)x56(H)x14.06(D)(mm) |
| Active Area | 48.96(W)x36.72(H) (Typ, mm) |
| Brightness | 330 Nits (Optional) |
| Touch Screen | Resistive (Optional) |
| Rough Weight | 37(g) |
| Operating Voltage | 5V |
| Operating Temperature | -20℃~60℃ |
| Storage Temperature | -30℃~70℃ |

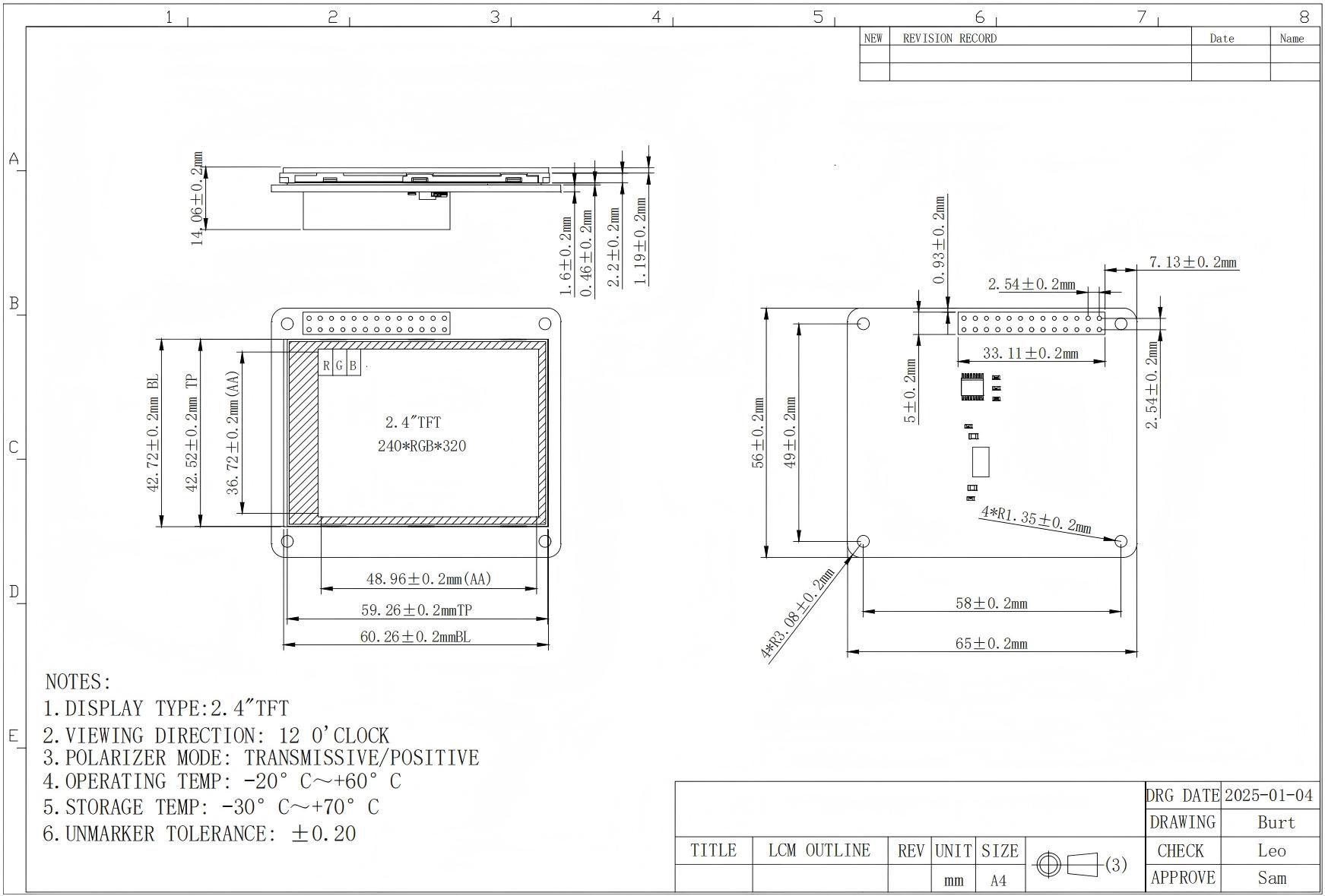

Product Structure
Key Features
The Reaper 2.4″ Raspberry Pi IPS LCD Display (Model: RPMPI2411) is a perfectly compatible and can be directly inserted into any version of the Raspberry Pi (Raspberry Pi ZeroW, A, A+, B, B+, 2B, 3B, 3B+),Support for Raspbian/Ubuntu/Kali systems, Provide driver, image, and online wiki guidance documents.
·Size & Quality
A compact 2.4-inch screen with TFT transmissive technology, providing a high-quality display area of 36.72*48.96 mm.
·High Brightness
With 1000 nits brightness, the display is clearly visible even in well-lit environments, making it ideal for outdoor and industrial use.
·Versatile Viewing
Full viewing angle for a consistent and color-accurate experience from any perspective.
·Touch Panel Technology
Optional resistive or projected capacitive (PCAP) touch screen, enhancing interactivity and usability.
·Durability
Operating temperatures range from -20 to +70ºC, ensuring reliable performance in various conditions.
Applications
Reaper’s advanced technology makes this display suitable for Industrial Equipment, Medical Devices, Home Intelligent Devices, Digital Consumers, Video Game Devices, and Instruments.
Brand Assurance
Reaper International Co., Ltd, with over a decade of expertise, specializes in LCD displays, offering customized solutions that cater to diverse needs.
