2.8 Inch round HDMI LCD display
2.8 Inch 480*480 Resolution Round HDMI LCD Display for Various Devices Such as Computers and Raspberry Pi
Module NO: RPMPC2809
Size: 2.8″
Resolution: 480*480 Pixels
Display Mode: IPS
Brightness: 250 Nits
Interface: mini HDMI
Display Color: 262K
Driver IC: ST7701S
Reaperlcd offers a rich diversity of TFT/LCD/LCM and touch screens, we are sure to have the perfect fit for your application requirements.
Product Description
- With its own shell
- ○The shell is made of integrated aluminum material, which is CNC carved as a whole, with a round and smooth texture,quisitely carved
- 2.8 inch round display
- ○The viewing Angle is large
- ○true color
- ○Dynamic picture quality is excellent
- ○Energy saving and environmental protection
- HDMI interface
- ○Can be used as HDMI display
- Support for multiple device access
- ○ Can be connected to Raspberry Pi, PC, and other devices
- Support for multiple system displays
- ○Used as a raspberry pi display that supports Raspberry Pi OS, Ubuntu, Kali-Linux, win10 IOT
- ○Work as a PC monitor, support win7, win10, win11 system , free drive
| ITEM | STANDARD VALUES |
|---|---|
| LCD Size | 2.8" |
| Resolution | 480x480 |
| TFT Type | IPS |
| Interface Type | mini HDMI |
| Field of view | ALL 0’ CLOCK |
| Module PCB Size | 89.50(W ) ×89.50(H)×10.00(T)(mm) |
| Active Area | 70.13(W) x70.13(H) (Typ, mm) |
| Brightness | 250 Nits (Optional) |
| Touch Screen | Capacitive(optional) |
| Driver IC | ST7701S |
| Operating Voltage | 5V |
| Operating Temperature | -20℃~60℃ |
| Storage Temperature | -30℃~70℃ |

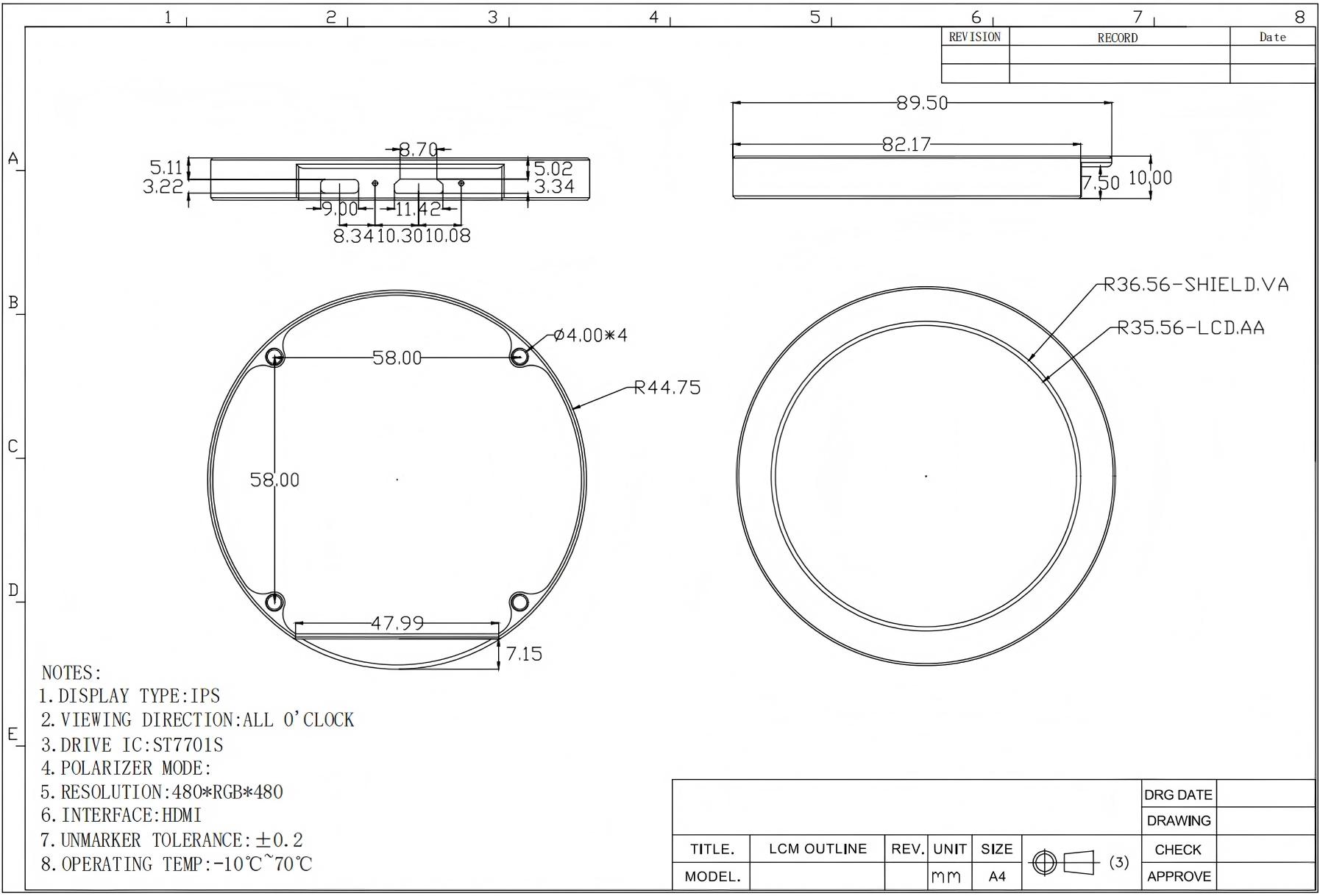

Product Structure
Product Application
Key Features
The Reaper 2.8″ Round LCD Display (Model: RPMPC2809) is a Comes Used as a raspberry pi display that supports Raspberry Pi OS, Ubuntu, Kali-Linux, win10 IOT,Work as a PC monitor, support win7, win10, win11 system , free drive
·Size & Quality
A compact 2.8-inch screen with TFT transmissive technology, providing a high-quality display area of 70.13*70.13 mm.
·High Brightness
With 1000 nits brightness, the display is clearly visible even in well-lit environments, making it ideal for outdoor and industrial use.
·Versatile Viewing
Full viewing angle for a consistent and color-accurate experience from any perspective.
·Touch Panel Technology
Optional resistive or projected capacitive (PCAP) touch screen, enhancing interactivity and usability.
·Durability
Operating temperatures range from -20 to +70ºC, ensuring reliable performance in various conditions.
Applications
Reaper’s advanced technology makes this display suitable for Industrial Equipment, Medical Devices, Home Intelligent Devices, Digital Consumers, Video Game Devices, and Instruments.
Brand Assurance
Reaper International Co., Ltd, with over a decade of expertise, specializes in LCD displays, offering customized solutions that cater to diverse needs.
