3.5 Inch Arduino LCD Display for Mega2560
3.5 Inch 320*480 Resolution Arduino Uno Mega2560 TFT LCD Display Module with 16-Bit Parallel Interface
Module NO: RPMAR3513
Size: 3.5″
Resolution: 480*320 Pixels
Display Mode: TN
Brightness: 390 Nits
Interface: 16-bit parallel interface
Display Color: RGB 65K color
Driver IC: ILI9486
Reaperlcd offers a rich diversity of TFT/LCD/LCM and touch screens, we are sure to have the perfect fit for your application requirements.
Product Description
- 3.5-inch color screen, support 65K color display, display rich colors
- 320×480 HD resolution for clear display
- Fast transmission with 16-bit parallel bus
- On-board 5V/3.3V level shifting IC, compatible with 5V/3.3V operating voltage
- Support Arduino Mega2560 direct plug-in use
- Provides an Arduino library with a rich sample program
- Easy to expand the experiment with SD card slot
- Military-grade process standards, long-term stable work
- Provide underlying driver technical support
| ITEM | STANDARD VALUES |
|---|---|
| LCD Size | 3.5" |
| Resolution | 480x320 |
| TFT Type | TN |
| Interface Type | 16-bit parallel interface |
| LCD Pin Number | 36pin |
| Module PCB Size | 60.30x96.60 (Typ, mm) |
| Active Area | 48.96x73.44 (Typ, mm) |
| Brightness | 390 Nits (Optional) |
| Touch Screen | Without (Optional) |
| Driver IC | ILI9486 |
| Operating Voltage | 5V/3.3V |
| Operating Temperature | -20℃~60℃ |
| Storage Temperature | -30℃~70℃ |

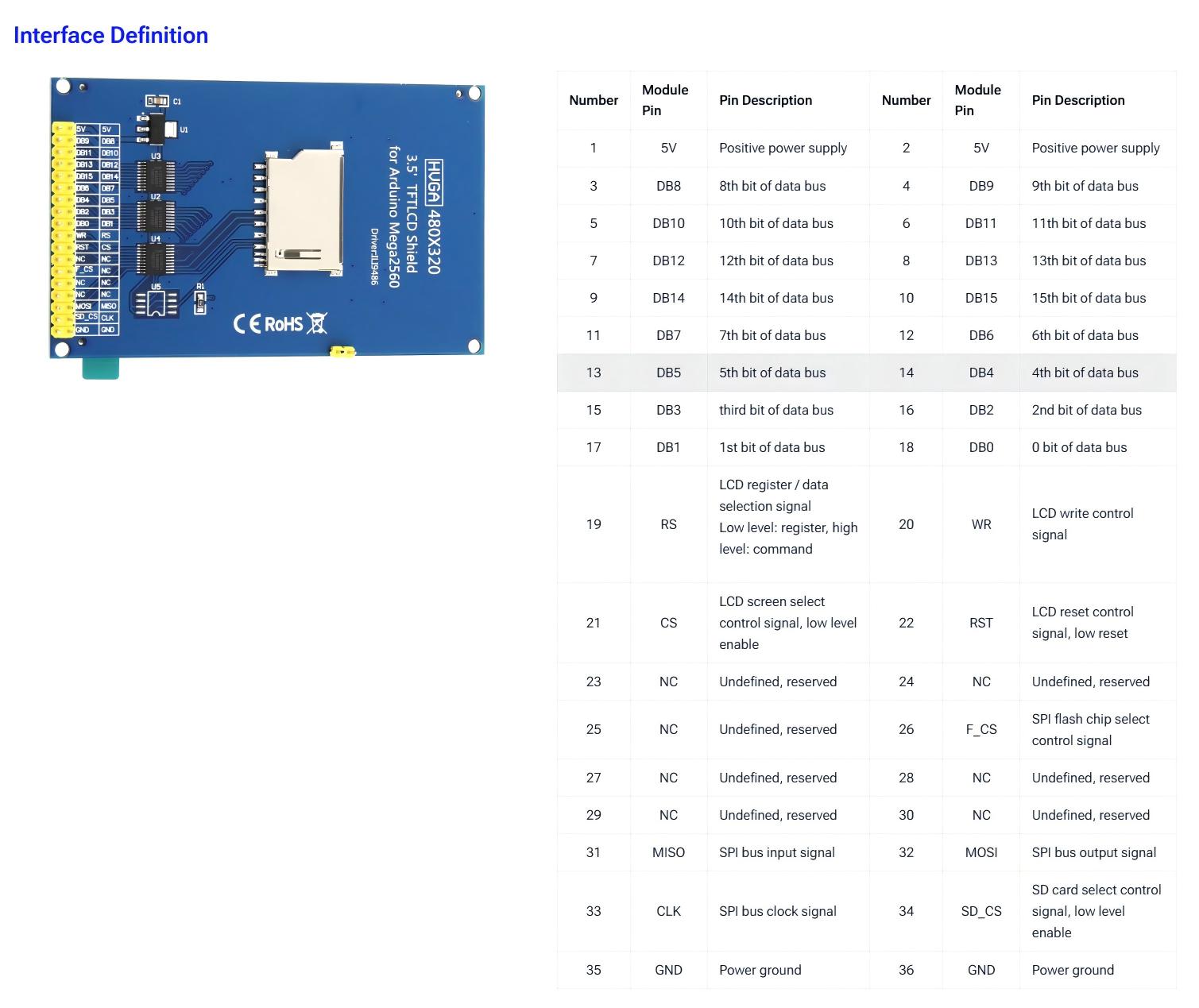

Pin Definition
Product Structure
Key Features
The Reaper 3.5″ Arduino LCD Display (Model: RP430BS4024) is a Support Arduino Mega2560 direct plug-in use,Provides an Arduino library with a rich sample program,Easy to expand the experiment with SD card slot,Provide underlying driver technical support.
·Size & Quality
A compact 3.5-inch screen with TFT transmissive technology, providing a high-quality display area of 48.96*73.44 mm.
·Easy to operate
Support Arduino Mage2560 direct plug-in use,Provides an Arduino library with a rich sample program,Provide underlying driver technical support.
·Versatile Viewing
Full viewing angle for a consistent and color-accurate experience from any perspective.
·Touch Panel Technology
Optional resistive or projected capacitive (PCAP) touch screen, enhancing interactivity and usability.
·Durability
Operating temperatures range from -20 to +70ºC, ensuring reliable performance in various conditions.
Applications
Reaper’s advanced technology makes this display suitable for Industrial Equipment, Medical Devices, Home Intelligent Devices, Digital Consumers, Video Game Devices, and Instruments.
Brand Assurance
Reaper International Co., Ltd, with over a decade of expertise, specializes in LCD displays, offering customized solutions that cater to diverse needs.
