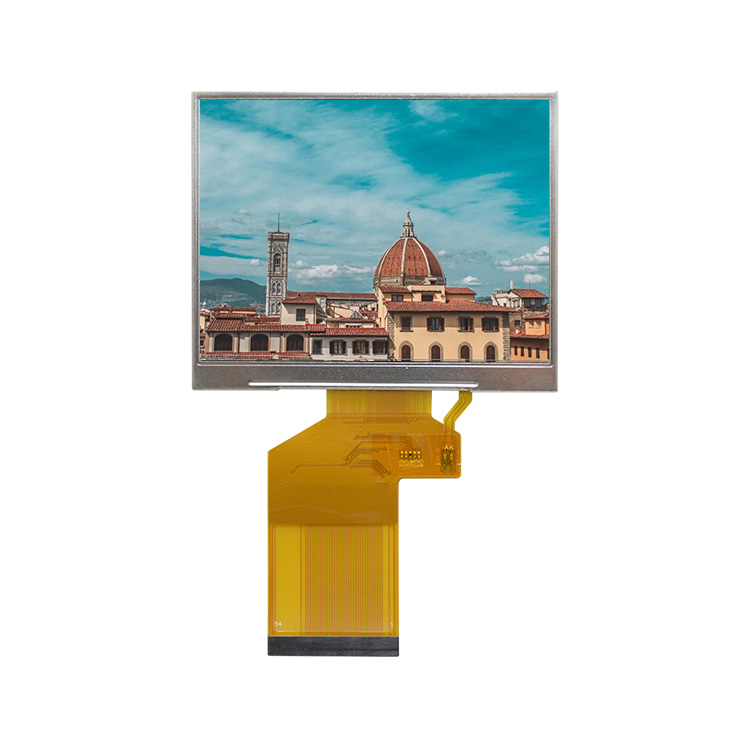

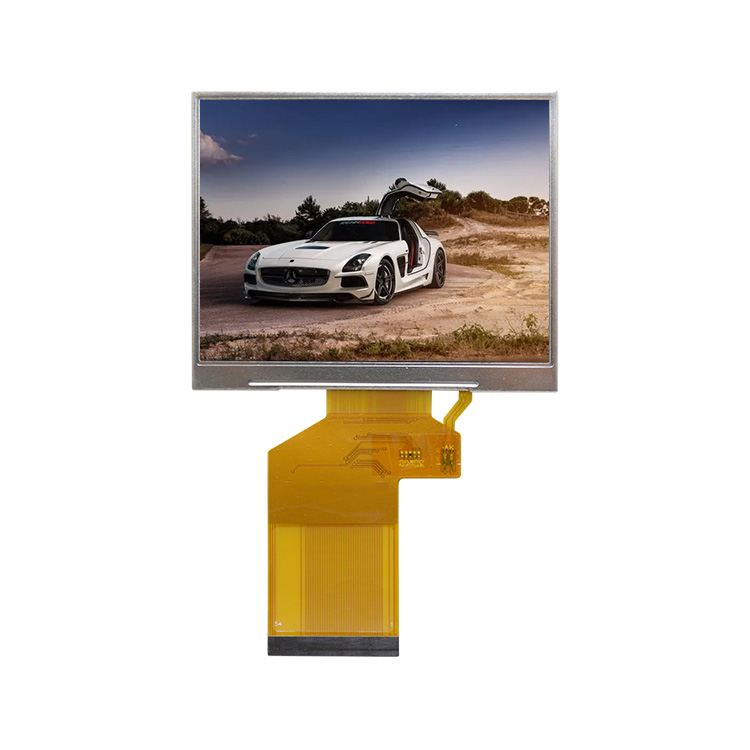

3.5 Inch 320*240 LCD Display
3.5 Inch TFT LCD Display 320*240 Resolution RGB54pin Interface Optiongal Capacitive Or Resistive Touch Panel
Module NO: RPSCT035001-V01
Size: 3.5″
Resolution: 320*240 Pixels
Display Mode: TN
Brightness: 350 Nits
Interface: RGB Interface
Display Color: RGB 262K color
Driver IC: HX8238-D
Reaperlcd offers a rich diversity of TFT/LCD/LCM and touch screens, we are sure to have the perfect fit for your application requirements.
Product Description
- 1,The full name of TFT is Thin Film Transistor. Each pixel on TFT display is driven by a thin film transistor, The TFT display is a type of active matrix liquid crystal display device.2, TFT display module is composed of a TFT LCD panel, driver IC, FPC and backlight unit.3, The luminance of display module could be customized as per your requirements.4, Capacitive & Resistive touch panel is available for your optional.5, It’s Standard and Ready-made TFT LCD Module.6, We have professional and experienced team to make custom solution base on your design.
| ITEM | STANDARD VALUES |
|---|---|
| LCD Size | 3.5" |
| Resolution | 320x240 |
| TFT Type | TN |
| Interface Type | RGB interface |
| LCD Pin Number | 54 pin (Customizable FPC) |
| Module PCB Size | 76.90x63.90 (Typ, mm) |
| Active Area | 70.08x52.56 (Typ, mm) |
| Brightness | 350 Nits (Optional) |
| Touch Screen | Optional(Capacitive or Resistive Touch Screen) |
| Driver IC | H8238-D |
| Operating Voltage | 3.3V |
| Operating Temperature | -20℃~70℃ |
| Storage Temperature | -30℃~80℃ |

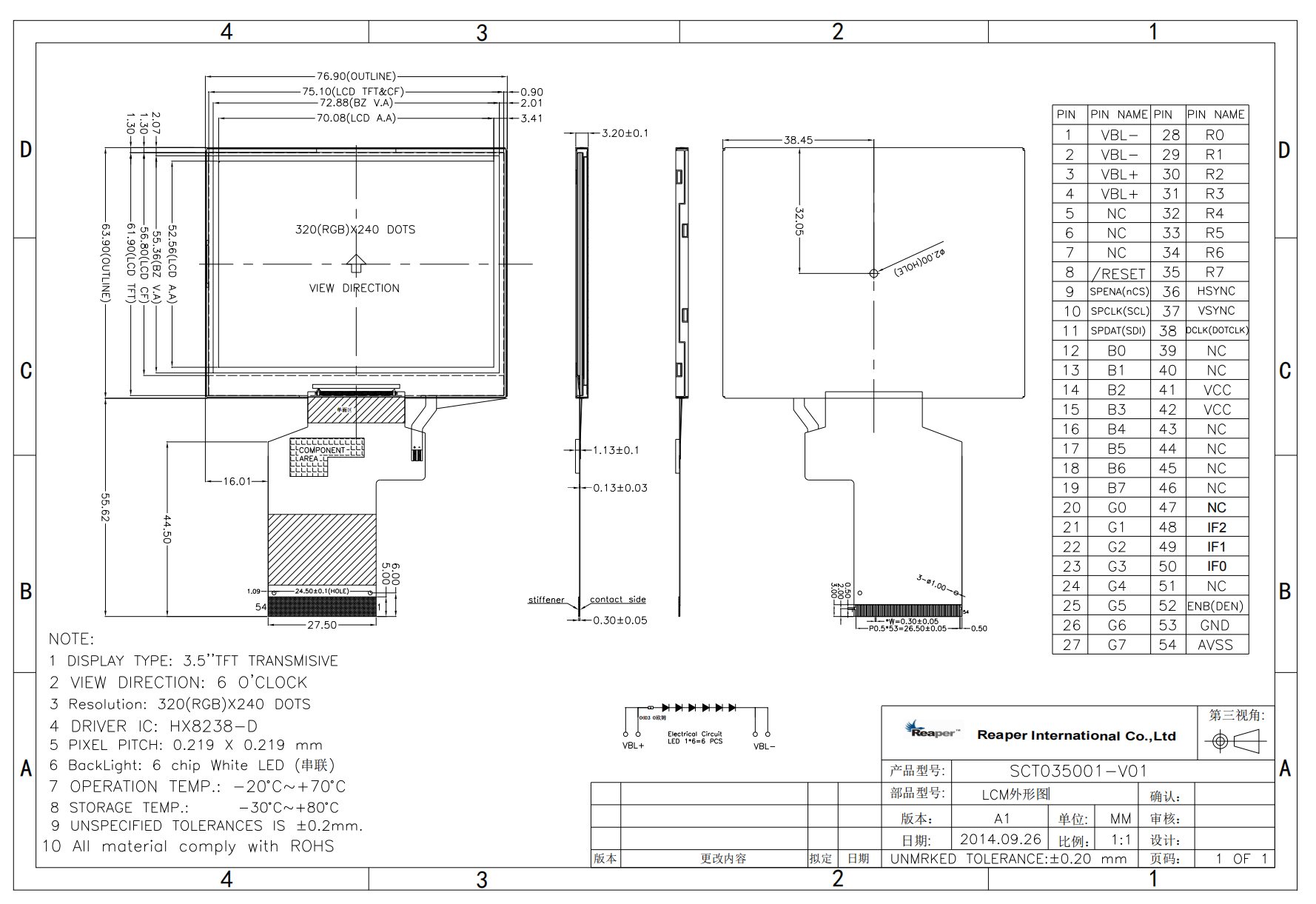

Product Structure
Key Features
The Reaper 3.2″ LCD Display (Model: RPSCT035001-V01) is a Standard and Ready-made TFT LCD Display,TFT LCD display is composed of a TFT LCD panel, driver IC, FPC and backlight unit,The luminance of display module could be customized as per your requirements,Capacitive & Resistive touch panel is available for your optional.
·Size & Quality
A compact 3.5-inch screen with TFT transmissive technology, providing a high-quality display area of 70.08*52.56 mm.
·High Brightness
With 1000 nits brightness, the display is clearly visible even in well-lit environments, making it ideal for outdoor and industrial use.
·Versatile Viewing
Full viewing angle for a consistent and color-accurate experience from any perspective.
·Touch Panel Technology
Optional resistive or projected capacitive (PCAP) touch screen, enhancing interactivity and usability.
·Durability
Operating temperatures range from -20 to +70ºC, ensuring reliable performance in various conditions.
Applications
Reaper’s advanced technology makes this display suitable for Industrial Equipment, Medical Devices, Home Intelligent Devices, Digital Consumers, Video Game Devices, and Instruments.
