3.5 Inch Parallel Port LCD Module
3.5 Inch 320X480 Resolution 16bit Parallel Interface TFT LCD Module Optional Touch Panel Display
Module NO: RPMRB3503
Size: 3.5″
Resolution: 320*480 Pixels
Display Mode: TN
Brightness:230 Nits
Interface: 16Bit parallel interface
Display Color: RGB 65K color
Driver IC: ILI9486
Reaperlcd offers a rich diversity of TFT/LCD/LCM and touch screens, we are sure to have the perfect fit for your application requirements.
Product Description
- 3.5-inch color screen, support 16BIT RGB 65K color display, display rich colors
- 320×480 resolution for clear display
- 16-bit parallel bus transmission for fast transfer speed
- Supports ALIENTEK STM32 Mini, Elite, WarShip, Explorer, and Apollo development boards for direct plug-in use
- Support for touch function
- Support SD card function expansion
- Provides a rich sample program for STM32 and C51 platforms
- Military-grade process standards, long-term stable work
- Provide underlying driver technical support
| ITEM | STANDARD VALUES |
|---|---|
| LCD Size | 3.5" |
| Resolution | 320x480 |
| TFT Type | TN |
| Interface Type | 16Bit parallel interface |
| LCD Pin Number | 34pin |
| Module PCB Size | 56.34x98.25 (Typ, mm) |
| Active Area | 48.96x73.44 (mm) |
| Brightness | 280 Nits (Optional) |
| Touch Screen | Optional(Resistive Touch Screen) |
| Driver IC | ILI9486 |
| Operating Voltage | 3.3/5 V |
| Operating Temperature | -20℃~60℃ |
| Storage Temperature | -30℃~70℃ |

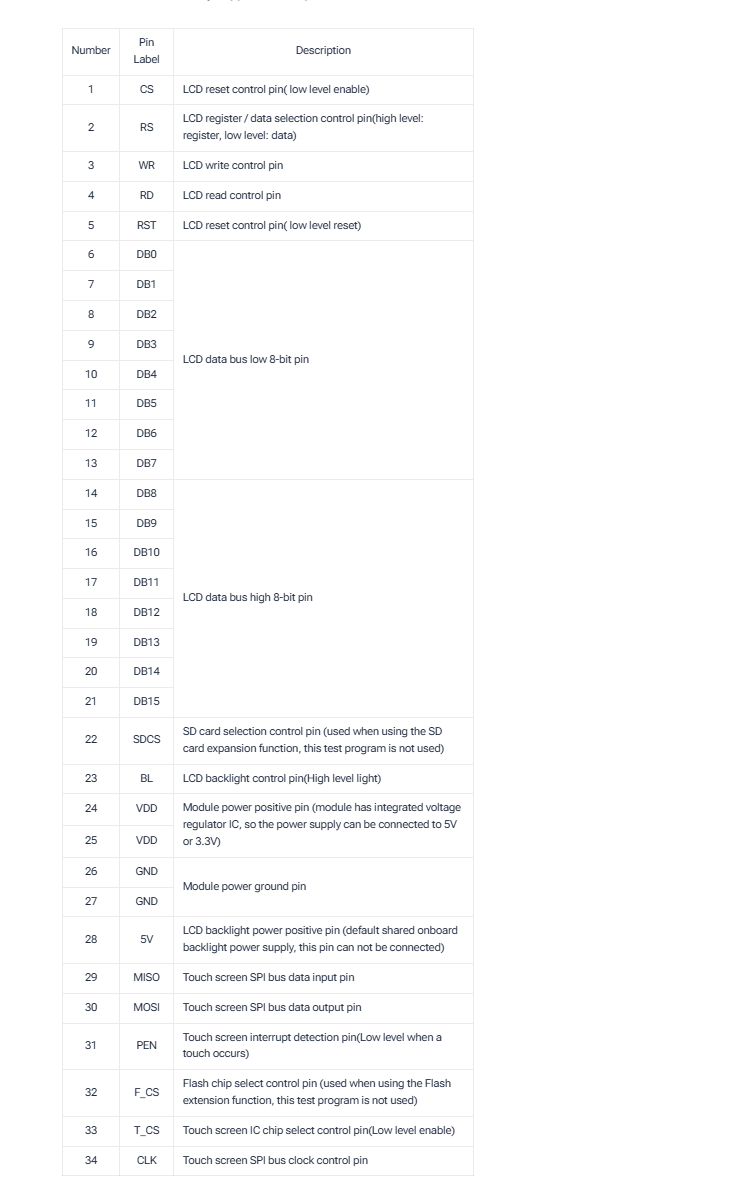

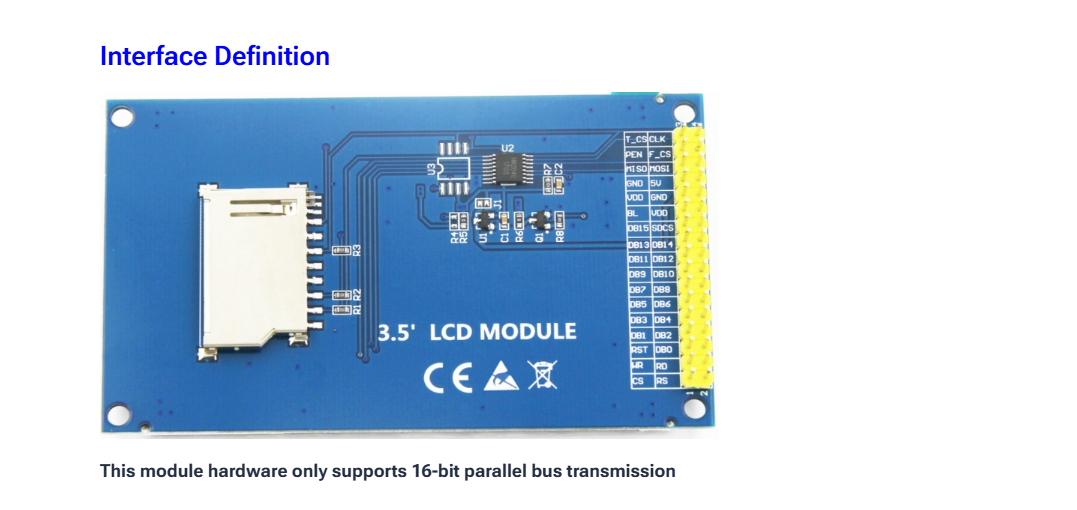

Pin Definition

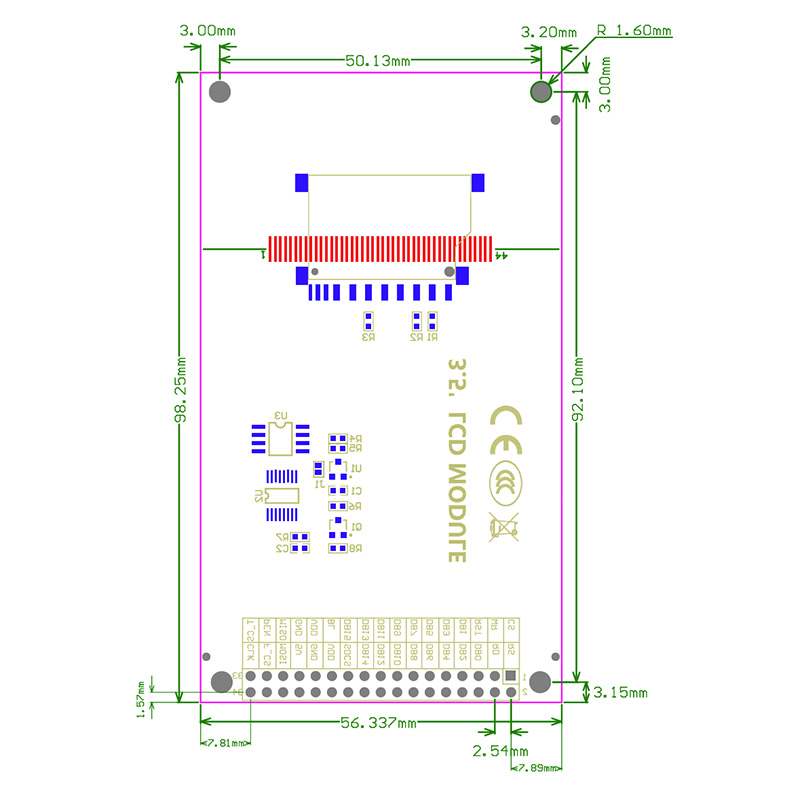

Product Structure
Key Features
The Reaper 3.5″ parallel port LCD Module (Model: RPMRB3503) is a Supports ALIENTEK STM32 Mini, Elite, WarShip, Explorer, and Apollo development boards for direct plug-in use,Support SD card function expansion,Provides a rich sample program for STM32 and C51 platforms,Provide underlying driver technical support.
·Size & Quality
A compact 3.5-inch screen with TFT transmissive technology, providing a high-quality display area of 48.96×73.44 mm.
·Easy to operate
Provide a rich sample program,Provide underlying driver technical support.
·Versatile Viewing
Full viewing angle for a consistent and color-accurate experience from any perspective.
·Touch Panel Technology
Optional resistive or projected capacitive (PCAP) touch screen, enhancing interactivity and usability.
·Durability
Operating temperatures range from -20 to +70ºC, ensuring reliable performance in various conditions.
Applications
Reaper’s advanced technology makes this display suitable for Industrial Equipment, Medical Devices, Home Intelligent Devices, Digital Consumers, Video Game Devices, and Instruments.
