3.5 Inch RPI LCD Display
3.5 inch RPI LCD Display Screen Module 320X480 with Resistive Touch
Module NO: RPMPI3501
Size: 3.5″
Resolution: 320*480 Pixels
Display Mode: TN
Brightness: 360 Nits
Interface: SPI
Display Color: 262K
Driver IC: ILI9486
Reaperlcd offers a rich diversity of TFT/LCD/LCM and touch screens, we are sure to have the perfect fit for your application requirements.
Product Description
- 320×480 resolution
- Resistive touch control
- Supports any revision of Raspberry Pi (directly-pluggable)
- Compatible with Raspberry Pi A, B, A+, B+, 2B, 3B, 3B+,4B versions
- Drivers provided (works with your own Raspbian/Ubuntu directly)
- Size perfectly fits the Pi
- High quality immersion gold surface plating
- Supports Raspbian system, ubuntu system ,kali Linux system
| ITEM | STANDARD VALUES |
|---|---|
| LCD Size | 3.5" |
| Resolution | 320x480 |
| TFT Type | TN |
| Interface Type | SPI |
| LCD Driver IC | ILI9486 |
| Module PCB Size | 55.6(W)x85.42(H)x19.88(D)(mm) |
| Active Area | 48.96(W)x73.44(H) (Typ, mm) |
| Brightness | 360 Nits (Optional) |
| Touch Screen | Resistive (Optional) |
| Rough Weight | 75(g) |
| Operating Voltage | 5V |
| Operating Temperature | -20℃~60℃ |
| Storage Temperature | -30℃~70℃ |

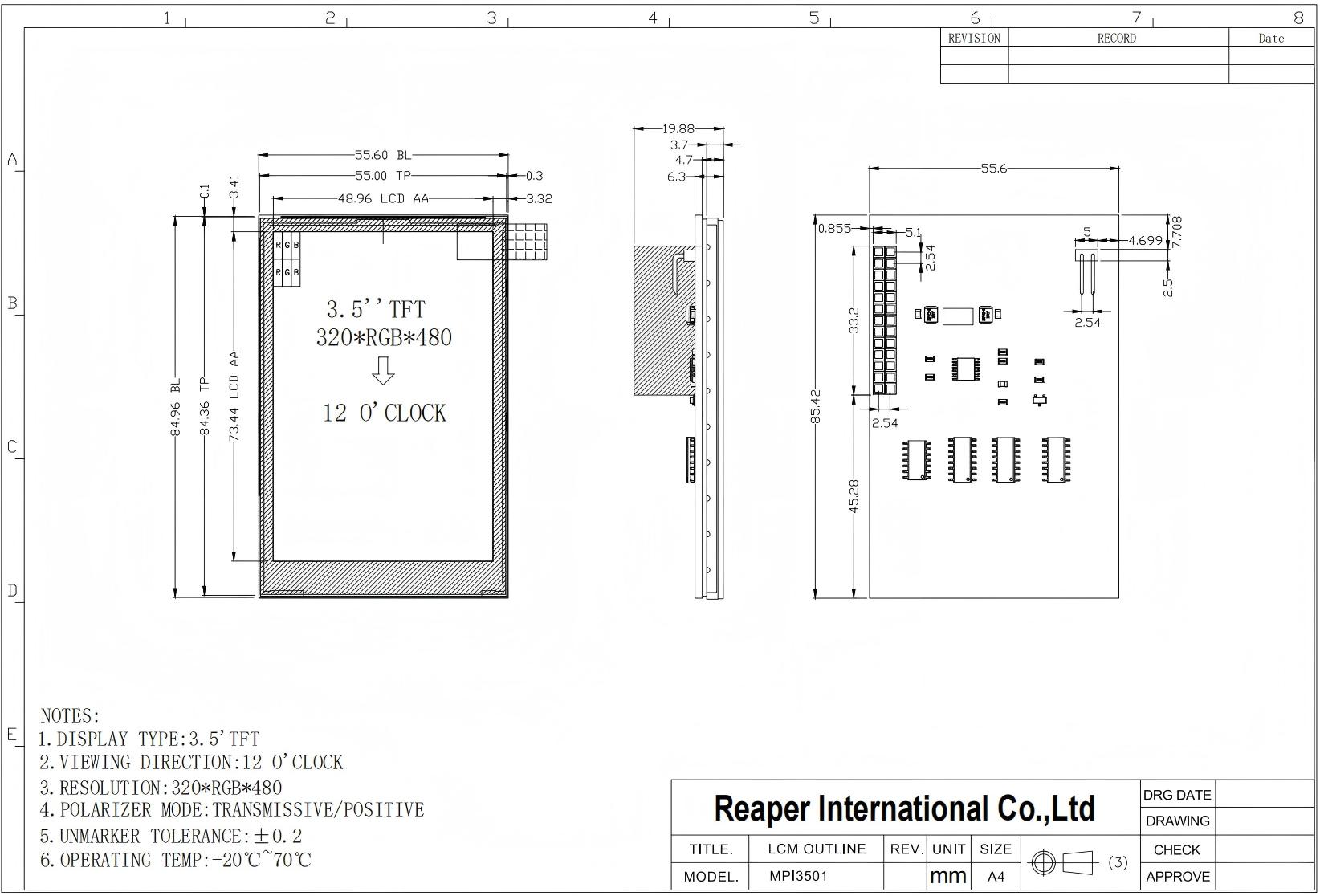

Product Structure
Key Features
The Reaper 3.5″ High RPI LCD Display (Model: RPMPI3501) is a Supports any revision of Raspberry Pi (directly-pluggable),Compatible with Raspberry Pi A, B, A+, B+, 2B, 3B, 3B+,4B versions,Drivers provided (works with your own Raspbian/Ubuntu directly),Supports Raspbian system, ubuntu system ,kali Linux system.
·Size & Quality
A compact 3.5-inch screen with TFT transmissive technology, providing a high-quality display area of 48.96*73.44 mm.
·High Brightness
With 1000 nits brightness, the display is clearly visible even in well-lit environments, making it ideal for outdoor and industrial use.
·Versatile Viewing
Full viewing angle for a consistent and color-accurate experience from any perspective.
·Touch Panel Technology
Optional resistive or projected capacitive (PCAP) touch screen, enhancing interactivity and usability.
·Durability
Operating temperatures range from -20 to +70ºC, ensuring reliable performance in various conditions.
Applications
Reaper’s advanced technology makes this display suitable for Industrial Equipment, Medical Devices, Home Intelligent Devices, Digital Consumers, Video Game Devices, and Instruments.
Brand Assurance
Reaper International Co., Ltd, with over a decade of expertise, specializes in LCD displays, offering customized solutions that cater to diverse needs.
