3.95 Inch Parallel Port LCD Module
3.95 Inch TFT LCD Screen 480X320 Resolution Parallel Port Optional Capacitive or Resistive Touch Display Module with SD Card Slot
Module NO: RPMRB3951
Size: 3.95″
Resolution: 320*480 Pixels
Display Mode: TFT
Brightness:260 Nits
Interface: 8Bit or 16Bit parallel interface
Display Color: 16BIT RGB 65K color
Driver IC: ST7796S/ILI9486
Reaperlcd offers a rich diversity of TFT/LCD/LCM and touch screens, we are sure to have the perfect fit for your application requirements.
Product Description
- 4.0-inch color screen, support 16BIT RGB 65K color display, display rich colors
- 320×480 resolution for clear display
- Supports 8-bit and 16-bit parallel bus transmission with fast transfer speed
- Supports ALIENTEK STM32 Mini, Elite, WarShip, Explorer, and Apollo development boards TFTLCD for direct plug-in use
- Support for touch function
- Support SD card function expansion
- Provides a rich sample program for STM32 and C51 platforms
- Military-grade process standards, long-term stable work
- Provide underlying driver technical support
| ITEM | STANDARD VALUES |
|---|---|
| LCD Size | 3.95" |
| Resolution | 320x480 |
| TFT Type | TN |
| Interface Type | 8Bit or 16Bit parallel interface |
| LCD Pin Number | 34pin |
| Module PCB Size | 61.98x108.80 (Typ, mm) |
| Active Area | 83.52x55.68 (mm) |
| Brightness | 260 Nits (Optional) |
| Touch Screen | Optional(Capacitive or Resistive Touch Screen) |
| Driver IC | ST7796S/ILI9488 |
| Operating Voltage | 3.3/5 V |
| Operating Temperature | -20℃~60℃ |
| Storage Temperature | -30℃~70℃ |

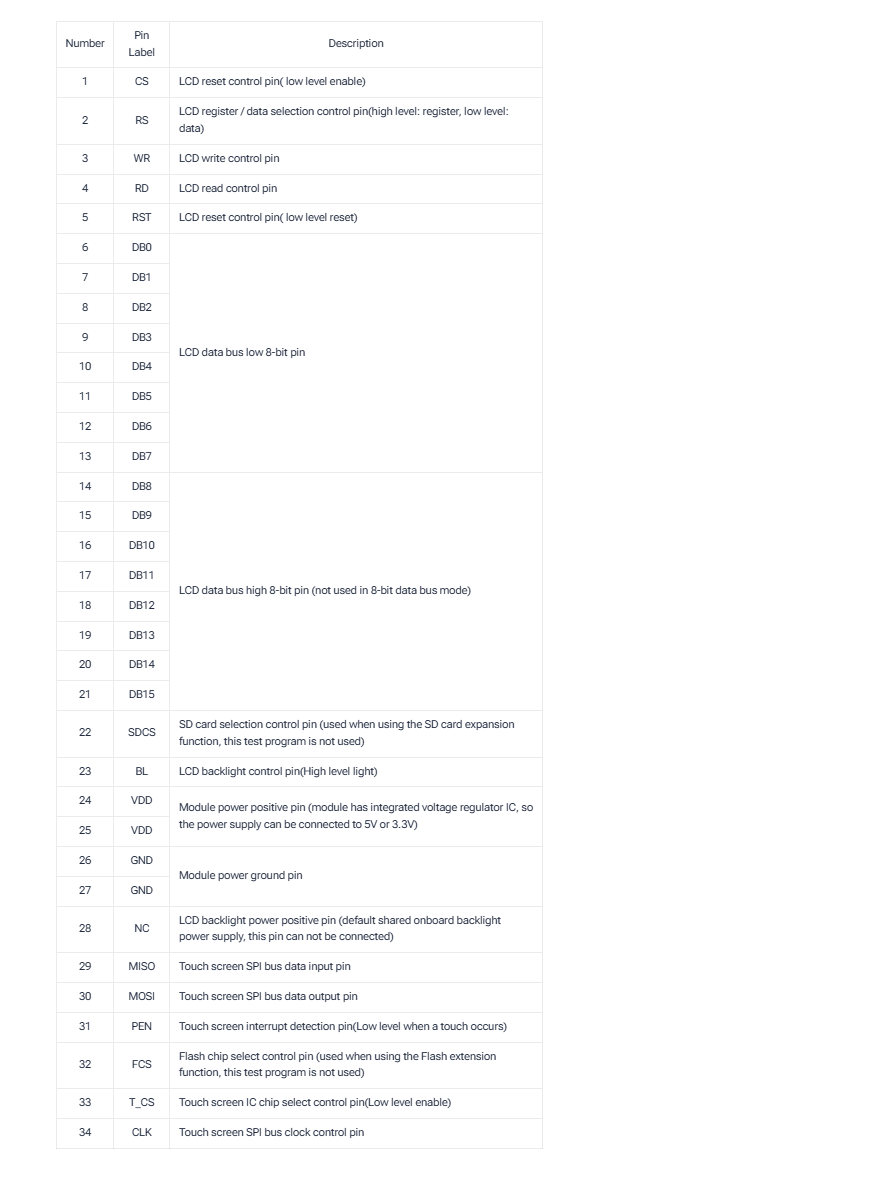

Pin Definition

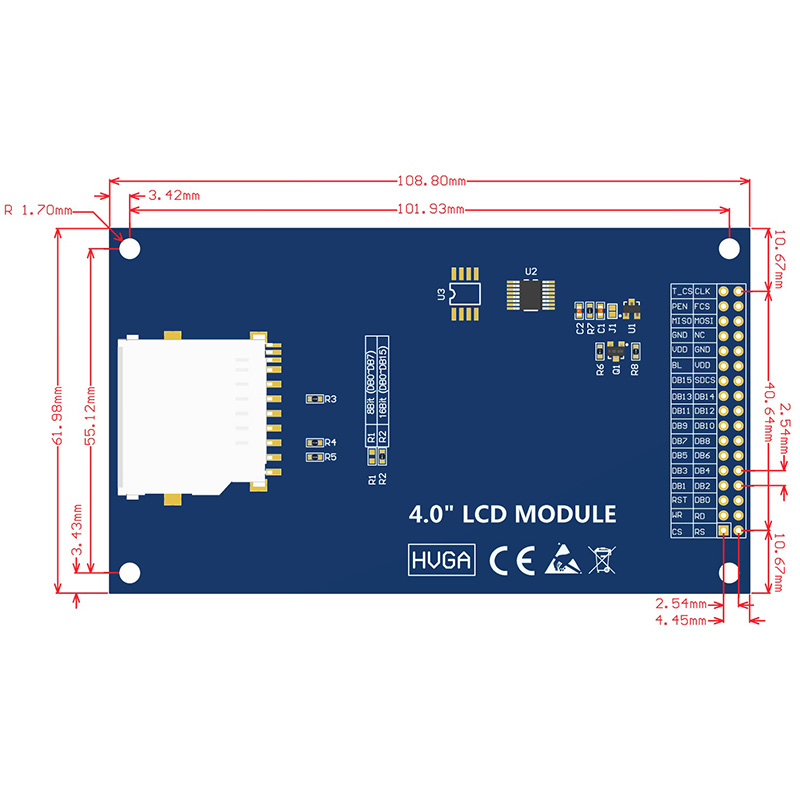

Product Structure
Key Features
The Reaper 3.95″ parallel port LCD Module (Model: RPMRB3951) is a Supports ALIENTEK STM32 Mini, Elite, WarShip, Explorer, and Apollo development boards TFTLCD for direct plug-in use,Support SD card function expansion,Provides a rich sample program for STM32 and C51 platforms,Provide underlying driver technical support.
·Size & Quality
A compact 3.95-inch screen with TFT transmissive technology, providing a high-quality display area of 83.52×55.68 mm.
·Easy to operate
Provide a rich sample program,Provide underlying driver technical support.
·Versatile Viewing
Full viewing angle for a consistent and color-accurate experience from any perspective.
·Touch Panel Technology
Optional resistive or projected capacitive (PCAP) touch screen, enhancing interactivity and usability.
·Durability
Operating temperatures range from -20 to +70ºC, ensuring reliable performance in various conditions.
Applications
Reaper’s advanced technology makes this display suitable for Industrial Equipment, Medical Devices, Home Intelligent Devices, Digital Consumers, Video Game Devices, and Instruments.
Brand Assurance
Reaper International Co., Ltd, with over a decade of expertise, specializes in LCD displays, offering customized solutions that cater to diverse needs.
