4.0 Inch SPI LCD Module
4.0 Inch 4-Wire Spi Serial Port 480*320 Resolution Ili9488/ST7796S TFT LCD Module Display Optional Touch Screen
Module NO: RPMSP4020
Size: 4.0″
Resolution: 320*480 Pixels
Display Mode: TN
Brightness:510 Nits
Interface: 4-wire SPI interface
Display Color: RGB 65K color
Driver IC: ILI9488/ST7796S
Reaperlcd offers a rich diversity of TFT/LCD/LCM and touch screens, we are sure to have the perfect fit for your application requirements.
Product Description
- 4.0-inch color screen,support 65K color display,display rich colors
- 480X320 resolution, optional touch function
- Using the SPI serial bus, it only takes a few IOs to illuminate the display
- Easy to expand the experiment with SD card slot
- Provide a rich sample program
- Military-grade process standards, long-term stable work
- Provide underlying driver technical support
| ITEM | STANDARD VALUES |
|---|---|
| LCD Size | 4.0" |
| Resolution | 320x480 |
| TFT Type | TN |
| Interface Type | 4-wire SPI interface |
| LCD Pin Number | 14pin |
| Module PCB Size | 61.74x108.04 (Typ, mm) |
| Active Area | 55.68x83.52 (mm) |
| Brightness | 510 Nits (Optional) |
| Touch Screen | Optional(Capacitive or Resistive Touch) |
| Driver IC | ILI9488/ST7796S |
| Operating Voltage | 3.3/5 V |
| Operating Temperature | -20℃~60℃ |
| Storage Temperature | -30℃~70℃ |

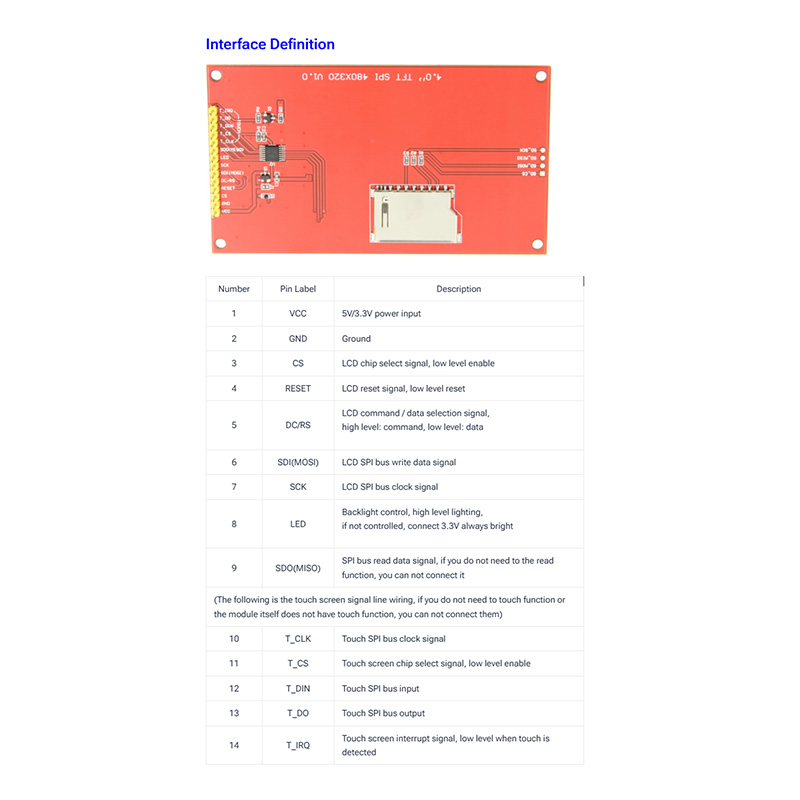

Pin Definition

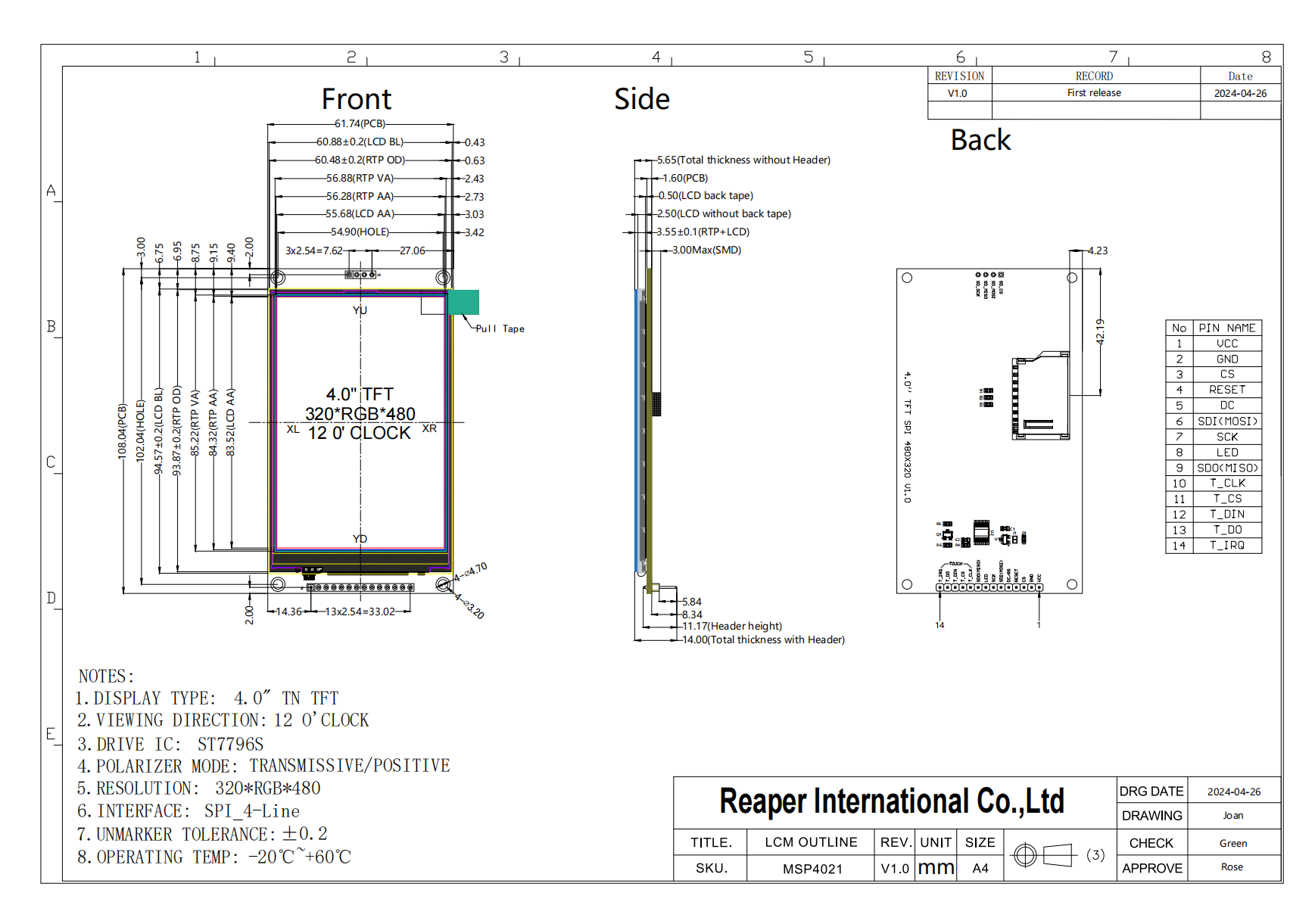

Product Structure
Key Features
The Reaper 4.0″ SPI LCD Display (Model: RPMSP4020) is a Using the SPI serial bus, it only takes a few IOs to illuminate the display,Easy to expand the experiment with SD card slot,Provide a rich sample program,Provide underlying driver technical support.
·Size & Quality
A compact 4.0-inch screen with TFT transmissive technology, providing a high-quality display area of 55.68×83.52 mm.
·Easy to operate
Provide a rich sample program,Provide underlying driver technical support.
·Versatile Viewing
Full viewing angle for a consistent and color-accurate experience from any perspective.
·Touch Panel Technology
Optional resistive or projected capacitive (PCAP) touch screen, enhancing interactivity and usability.
·Durability
Operating temperatures range from -20 to +70ºC, ensuring reliable performance in various conditions.
Applications
Reaper’s advanced technology makes this display suitable for Industrial Equipment, Medical Devices, Home Intelligent Devices, Digital Consumers, Video Game Devices, and Instruments.
