4.0 Inch SPI LCD Touch Display
4.0 Inch 320*480 Resolution TFT LCD Screen Spi Serial Port Capacitive Touch Display Module with SD Card Slot
Module NO: RPMSP4030
Size: 4.0″
Resolution: 320*480 Pixels
Display Mode: IPS
Brightness:300 Nits
Interface: 4-wire SPI interface
Display Color: RGB 65K color
Driver IC: ST7796S
Reaperlcd offers a rich diversity of TFT/LCD/LCM and touch screens, we are sure to have the perfect fit for your application requirements.
Product Description
- 4.0inch color screen with 320×480 resolution of 65K colors and rich display colors
- On board level conversion circuit, compatible with 5V and 3.3V MCU
- Adopting a 4-wire SPI serial bus to save I/O pins
- Optional capacitive touch/no touch function for modules
- Module input supports 2.54 pin interface and FPC extension interface
- Equipped with micro TF card slot for easy storage expansion
- Provide rich example learning programs (ESP32/STM32/Arduino UNO&Mage2560/C51/CH32)
- Provide low-level driver technical support, and update WIKI information online
- Multiple tests for module aging can meet military level standards, supporting long-term stable work
| ITEM | STANDARD VALUES |
|---|---|
| LCD Size | 4.0" |
| Resolution | 320x480 |
| TFT Type | IPS |
| Interface Type | 4-wire SPI interface |
| LCD Pin Number | 14pin |
| Module PCB Size | 60.88(W)x108.0(H)x12.95(D) (Typ, mm) |
| Active Area | 55.68(W)x83.52(H) (mm) |
| Brightness | 300 Nits (Optional) |
| Touch Screen | Optional(Capacitive Touch Screen) |
| Driver IC | ST7796S |
| Operating Voltage | 5 V |
| Operating Temperature | -20℃~60℃ |
| Storage Temperature | -30℃~70℃ |

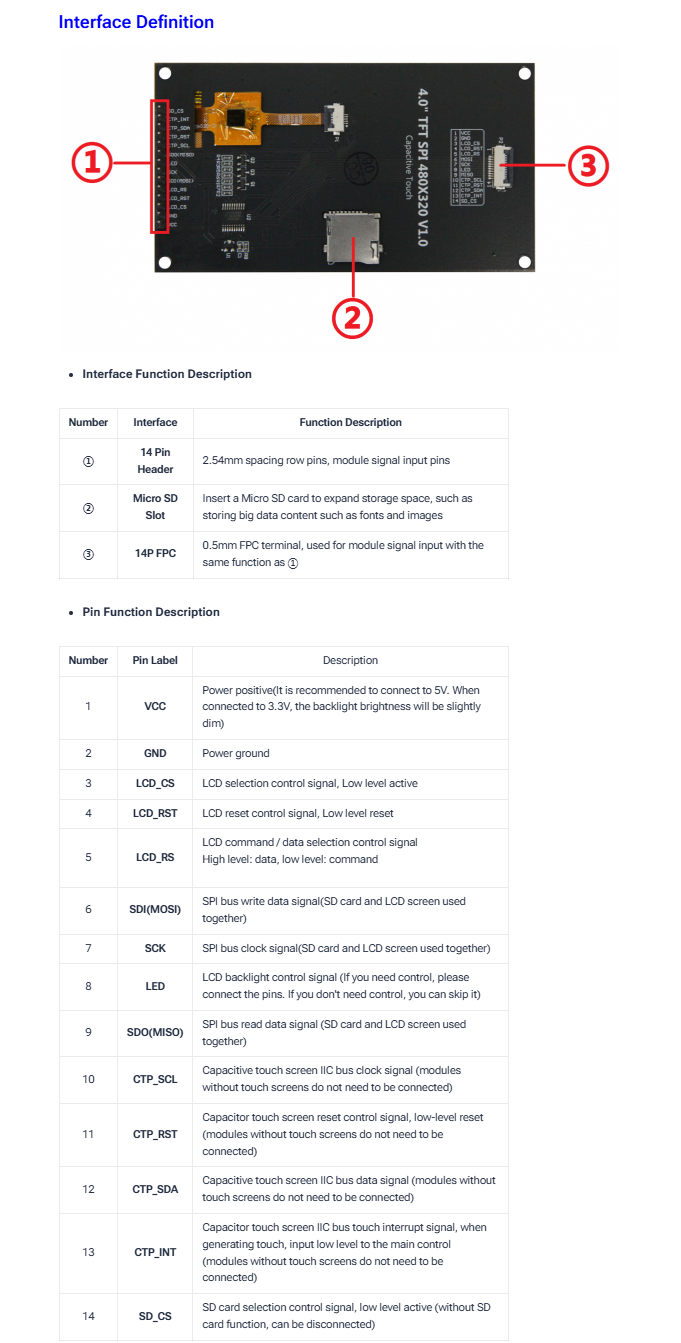

Pin Definition

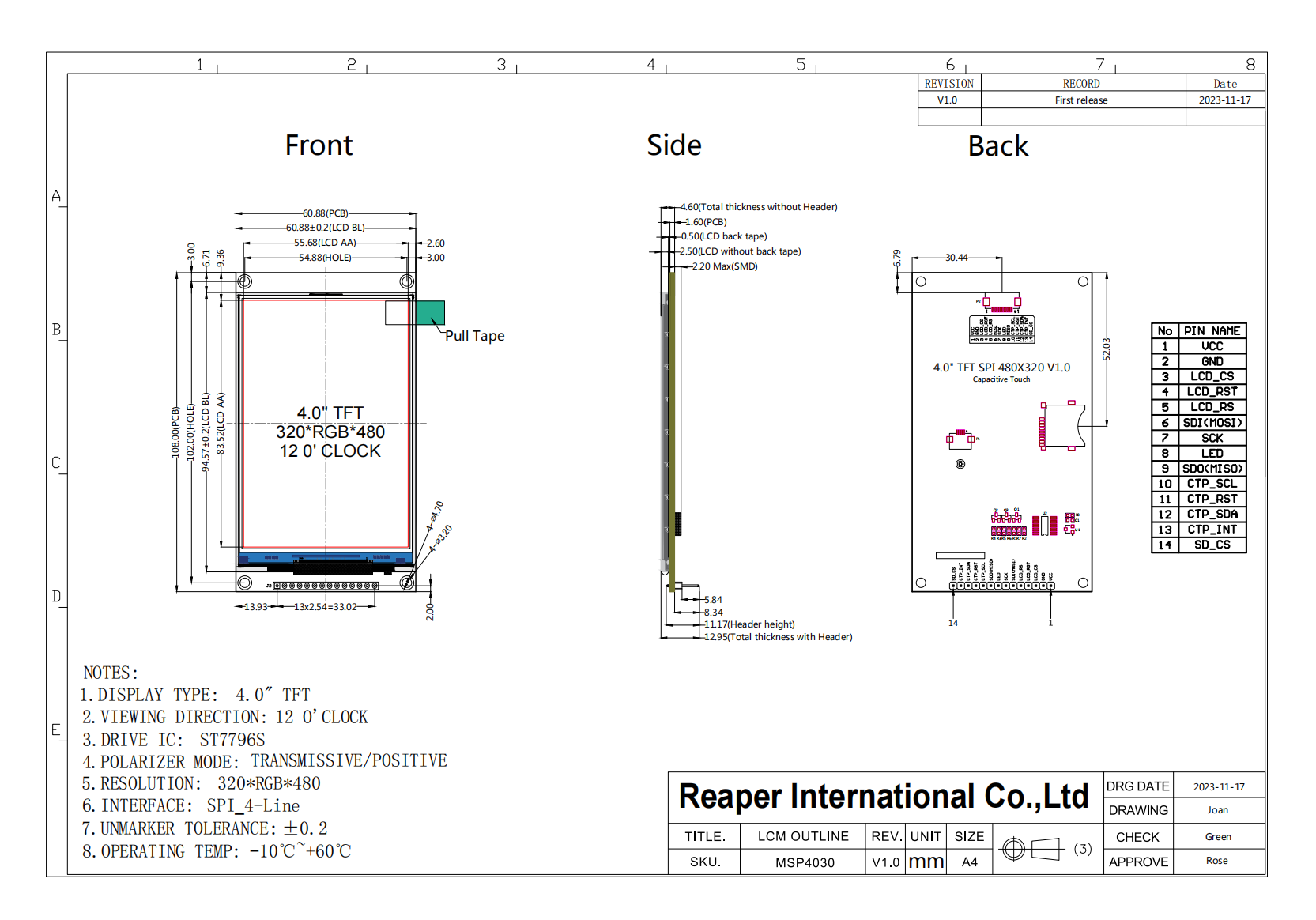

Product Structure
Key Features
The Reaper 4.0″ SPI LCD Display (Model: RPMSP4030) is a Adopting a 4-wire SPI serial bus to save I/O pins,Module input supports 2.54 pin interface and FPC extension interface,Provide rich example learning programs (ESP32/STM32/Arduino UNO&Mage2560/C51/CH32),Provide low-level driver technical support..
·Size & Quality
A compact 4.0-inch screen with TFT transmissive technology, providing a high-quality display area of 55.68(W)x83.52(H) mm.
·Easy to operate
Provide a rich sample program,Provide underlying driver technical support.
·Versatile Viewing
Full viewing angle for a consistent and color-accurate experience from any perspective.
·Touch Panel Technology
Optional resistive or projected capacitive (PCAP) touch screen, enhancing interactivity and usability.
·Durability
Operating temperatures range from -20 to +70ºC, ensuring reliable performance in various conditions.
Applications
Reaper’s advanced technology makes this display suitable for Industrial Equipment, Medical Devices, Home Intelligent Devices, Digital Consumers, Video Game Devices, and Instruments.
