4.3 Inch HDMI LCD Display
4.3 inch HDMI LCD Display Module 800X480 with 5point Capacitive Touch Screen
Module NO: RPMPI4305
Size: 4.3″
Resolution: 800*480 Pixels
Display Mode: IPS
Brightness: 350 Nits
Interface: HDMI
Display Color: 262K
Touch: Capacitive Touch
Reaperlcd offers a rich diversity of TFT/LCD/LCM and touch screens, we are sure to have the perfect fit for your application requirements.
Product Description
- 4.3″standard display, 800×480 resolution，maximum HDMI resolution 1920X1080 is supported
- Capacitive touch screen, support 5 point touch maximum
- Built-in OSD menu adjustment function (adjustable Contrast/ Brightness/Saturation, etc.)
- It is compatible with mainstream mini PC such as Raspberry Pi, BB Black, Banana Pi
- It can also be used as a general-purpose HDMI display, connecting computers, TV boxes, Microsoft Xbox360, SONY PS4, Nintendo Switch and so on
- Used as a Raspberry Pi display that supports Raspbian, Ubuntu, Kodi, Win10 IOT, single-touch, free drive
- Work as a PC monitor, support Win7, Win8, Win10 system 5 point touch (XP and older version system: single-point touch), free drive
- Support HDMI audio output,Backlight brightness can be adjusted
- CE, RoHS certification
| ITEM | STANDARD VALUES |
|---|---|
| LCD Size | 4.3" |
| Resolution | 800x480 |
| TFT Type | IPS |
| Interface Type | HDMI |
| Touch Interface | USB |
| Module PCB Size | 106.00*85.31 (mm) |
| Active Area | 95.04*53.86 (Typ, mm) |
| Brightness | 350 Nits (Optional) |
| Touch Screen | Capacitive (Optional) |
| Rough Weight | 219 (g) |
| Operating Voltage | 5V |
| Operating Temperature | -20℃~60℃ |
| Storage Temperature | -30℃~70℃ |

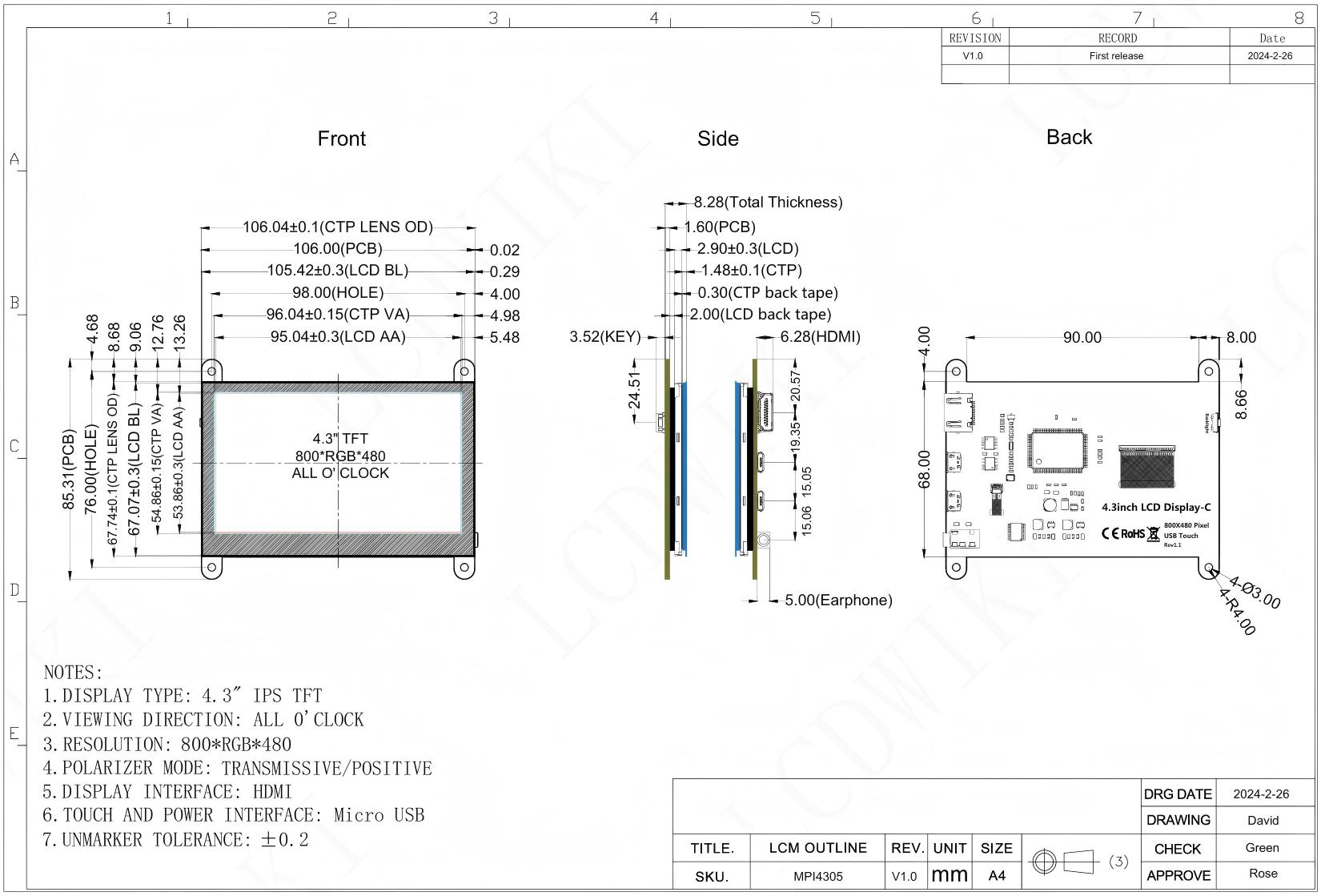

Product Structure
Key Features
The Reaper 4.3″ HDMI IPS LCD Display (Model: RPMPI4305) is a Used as a Raspberry Pi display that supports Raspbian, Ubuntu, Kodi, Win10 IOT, single-touch, free drive,Work as a PC monitor, support Win7, Win8, Win10 system 5 point touch (XP and older version system: single-point touch), free drive,Support HDMI audio output,Backlight brightness can be adjusted
·Size & Quality
A compact 4.3-inch screen with TFT transmissive technology, providing a high-quality display area of 95.04*53.856 mm.
·High Brightness
With 1000 nits brightness, the display is clearly visible even in well-lit environments, making it ideal for outdoor and industrial use.
·Versatile Viewing
Full viewing angle for a consistent and color-accurate experience from any perspective.
·Touch Panel Technology
Optional resistive or projected capacitive (PCAP) touch screen, enhancing interactivity and usability.
·Durability
Operating temperatures range from -20 to +70ºC, ensuring reliable performance in various conditions.
Applications
Reaper’s advanced technology makes this display suitable for Industrial Equipment, Medical Devices, Home Intelligent Devices, Digital Consumers, Video Game Devices, and Instruments.
Brand Assurance
Reaper International Co., Ltd, with over a decade of expertise, specializes in LCD displays, offering customized solutions that cater to diverse needs.
