5.0 Inch HDMI LCD Display
5.0 Inch 800X480 LCD Screen HDMI Interface Raspberry Pi LCD Display with Capacitive Touch Screen for Mini PC TV Boxes xBox360
Module NO: RPMPI5001
Size: 5.0″
Resolution: 800*480 Pixels
Display Mode: IPS
Brightness: 380 Nits
Interface: HDMI
Audio output: support
Touch Screen: Optional(capacitive or resistive)
Reaperlcd offers a rich diversity of TFT/LCD/LCM and touch screens, we are sure to have the perfect fit for your application requirements.
Product Description
- 5″standard display, 800×480 resolution，maximum HDMI resolution 1920X1080 is supported
- Capacitive touch screen, support 5 point touch maximum
- Built-in OSD menu adjustment function (adjustable Contrast/ Brightness/Saturation, etc.)
- It is compatible with mainstream mini PC such as Raspberry Pi, BB Black, Banana Pi
- It can also be used as a general-purpose HDMI display, connecting computers, TV boxes, Microsoft Xbox360, SONY PS4, Nintendo Switch and so on
- Used as a Raspberry Pi display that supports Raspbian, Ubuntu, Kodi, Win10 IOT, single-touch, free drive
- Work as a PC monitor, support Win7, Win8, Win10 system 5 point touch (XP and older version system: single-point touch), free drive
- Support HDMI audio output
- CE, RoHS certification
| ITEM | STANDARD VALUES |
|---|---|
| LCD Size | 5.0" |
| Resolution | 800x480 |
| TFT Type | IPS |
| Interface Type | HDMI |
| Touch Interface | USB |
| Outline Dimension | 121.11*95.24 (Typ, mm) |
| Active Area | 108.00*64.80 (Typ, mm) |
| Brightness | 380 Nits (Optional) |
| Touch Screen | Optional(capacitive or resistive) |
| Rough Weight | 259 (g) |
| Operating Voltage | 5V |
| Operating Temperature | -20℃~60℃ |
| Storage Temperature | -30℃~70℃ |

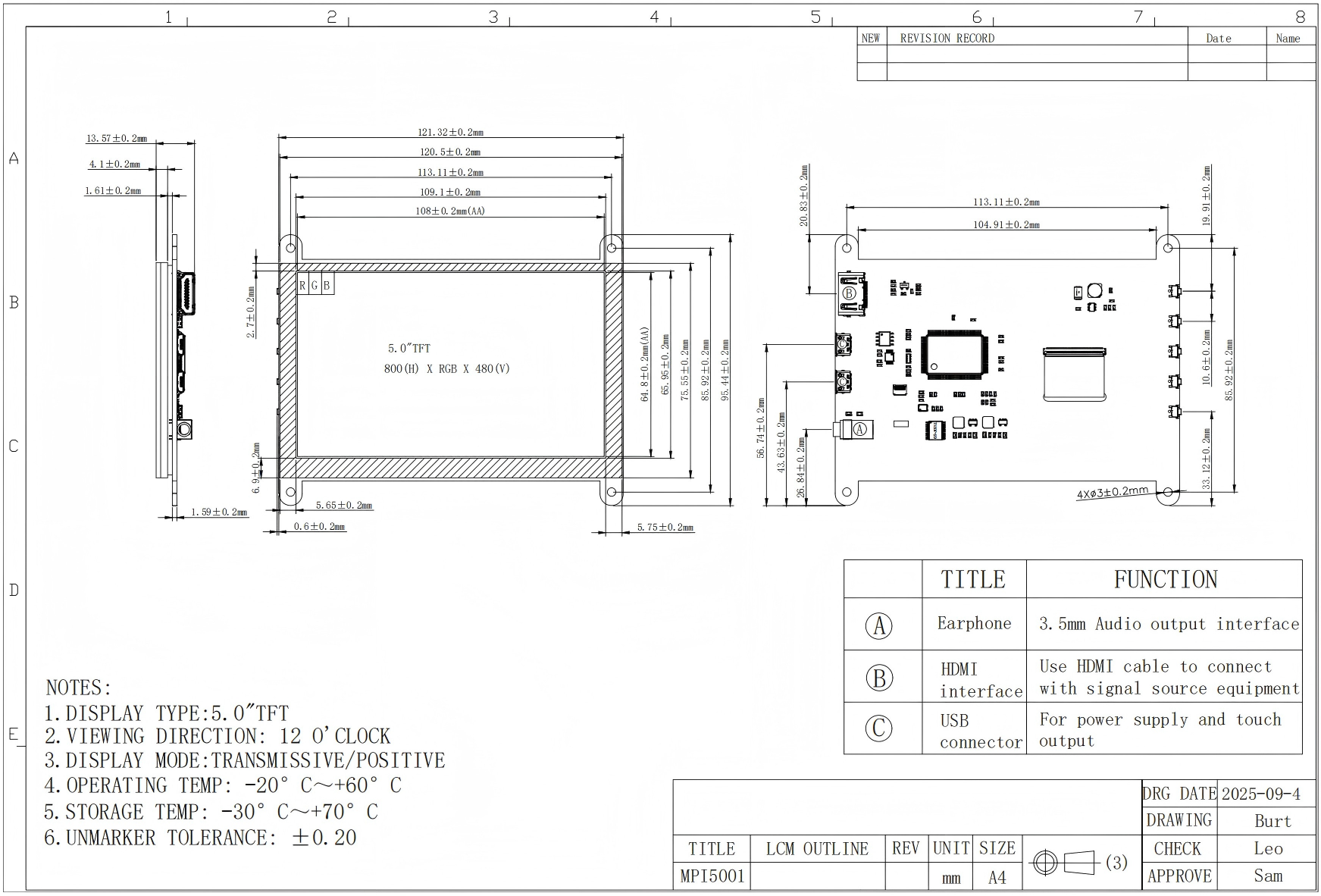

Product Structure
Key Features
The Reaper 5.0″ HDMI LCD Display (Model: RPMPI5001) is a Used as a Raspberry Pi display that supports Raspbian, Ubuntu, Kodi, Win10 IOT, single-touch, free drive,Work as a PC monitor, support Win7, Win8, Win10 system 5 point touch (XP and older version system: single-point touch), free drive
·Size & Quality
A compact 5.0-inch screen with TFT transmissive technology, providing a high-quality display area of 108*64.8 mm.
·High Brightness
With 1000 nits brightness, the display is clearly visible even in well-lit environments, making it ideal for outdoor and industrial use.
·Versatile Viewing
Full viewing angle for a consistent and color-accurate experience from any perspective.
·Touch Panel Technology
Optional resistive or projected capacitive (PCAP) touch screen, enhancing interactivity and usability.
·Durability
Operating temperatures range from -20 to +70ºC, ensuring reliable performance in various conditions.
Applications
Reaper’s advanced technology makes this display suitable for Industrial Equipment, Medical Devices, Home Intelligent Devices, Digital Consumers, Video Game Devices, and Instruments.
