7.0 Inch Parallel Port LCD Module
7 Inch TFT LCD Screen 800X480 Resolution Parallel Port SSD1963 Industrial LCD Display with CTP or RTP
Module NO: RPMRB7963
Size: 7.0″
Resolution: 800*480 Pixels
Display Mode: TFT
Brightness:210 Nits
Interface: 16Bit parallel interface
Display Color: 16BIT RGB 65K color
Driver IC: SSD1963
Reaperlcd offers a rich diversity of TFT/LCD/LCM and touch screens, we are sure to have the perfect fit for your application requirements.
Product Description
- 7.0-inch high-definition color screen, supporting 16bit RGB 65K color display, with rich display colors
- Support 800×480 resolution, and the display effect is very clear
- Using 16-bit parallel bus transmission with fast transfer speed
- Compatible with capacitive touch screen and resistive touch screen
- Support SPI flash
- With SD card slot, support SD card expansion
- Support three backlight control modes (always on, GPIO control, PWM control)
- Provides a rich sample program for STM32 and C51 platforms
- Military-grade process standards, long-term stable work
- Provide underlying driver technical support
| ITEM | STANDARD VALUES |
|---|---|
| LCD Size | 7.0" |
| Resolution | 800x480 |
| TFT Type | TN |
| Interface Type | 16Bit parallel interface |
| LCD Pin Number | 40pin |
| Module PCB Size | 181.00x108.00 (Typ, mm) |
| Active Area | 154.08x85.92 (mm) |
| Brightness | 210 Nits (Optional) |
| Touch Screen | Optional(Capacitive or Resistive Touch Screen) |
| Driver IC | SSD1963 |
| Operating Voltage | 5 V |
| Operating Temperature | -20℃~60℃ |
| Storage Temperature | -30℃~70℃ |

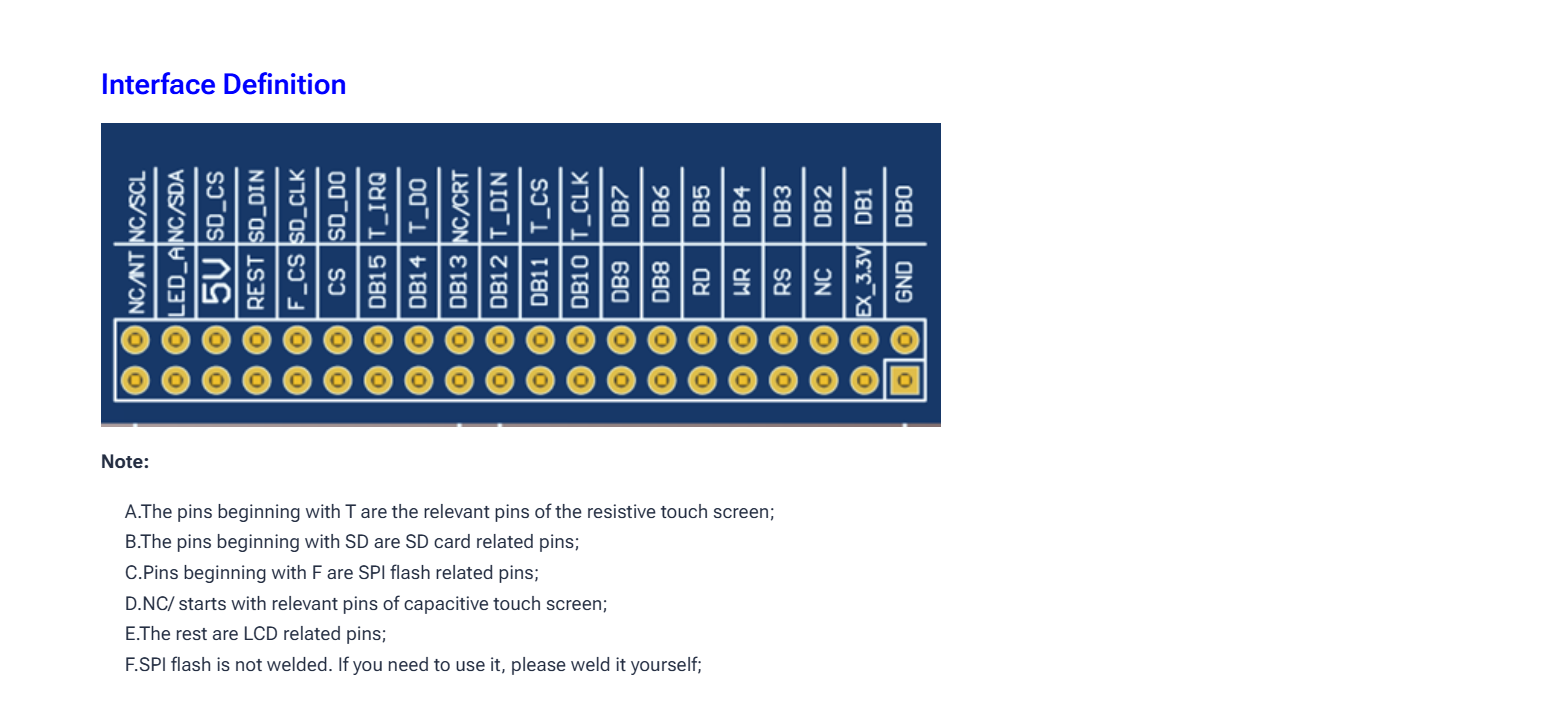

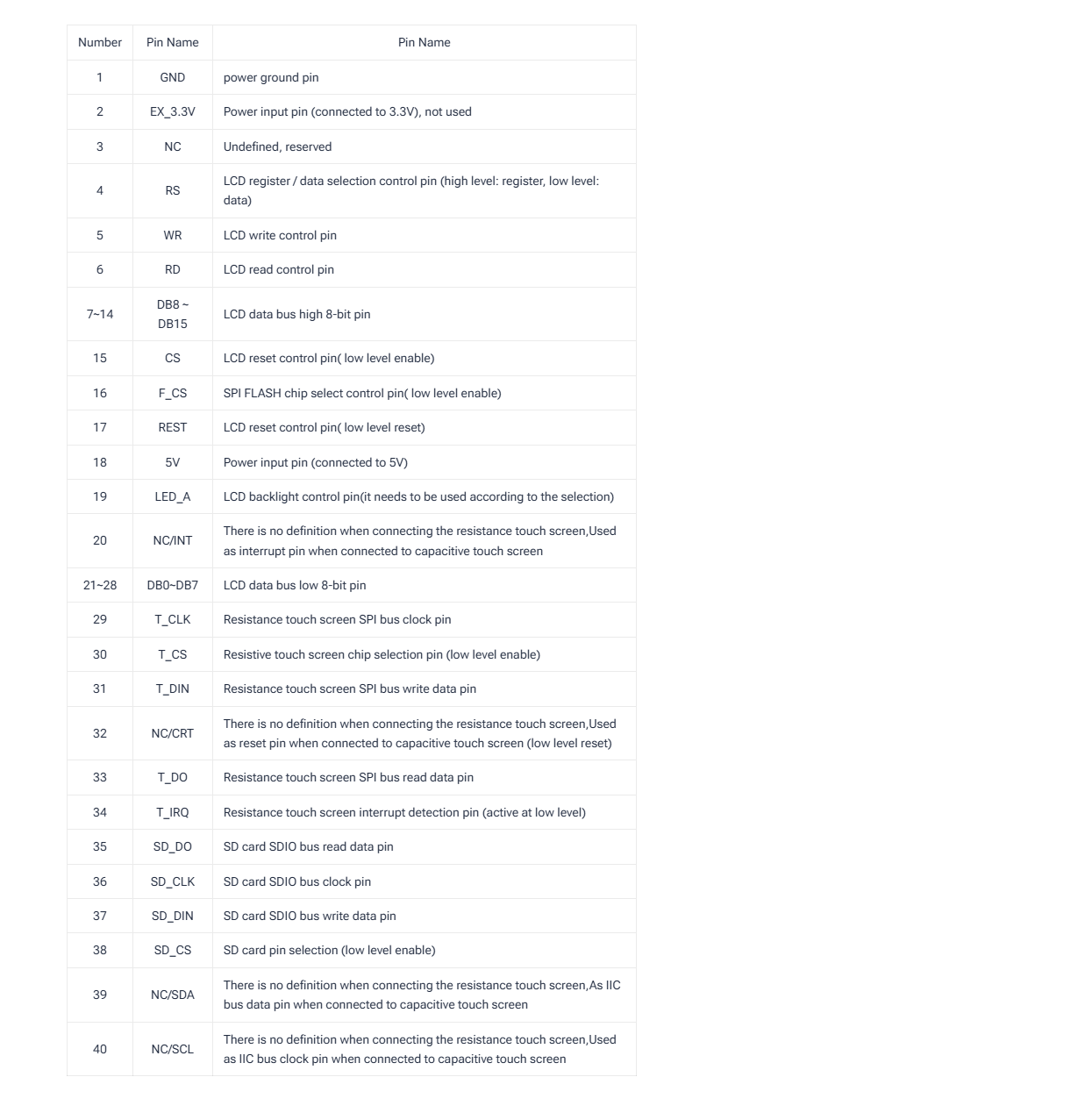

Pin Definition
Product Structure
Key Features
The Reaper 7.0″ parallel port LCD Module (Model: RPMRB7963) is a Support SPI flash,With SD card slot, support SD card expansion,Support three backlight control modes (always on, GPIO control, PWM control),Provides a rich sample program for STM32 and C51 platforms,Provide underlying driver technical support.
·Size & Quality
A compact 7.0-inch screen with TFT transmissive technology, providing a high-quality display area of 154.08×85.92 mm.
·Easy to operate
Provide a rich sample program,Provide underlying driver technical support.
·Versatile Viewing
Full viewing angle for a consistent and color-accurate experience from any perspective.
·Touch Panel Technology
Optional resistive or projected capacitive (PCAP) touch screen, enhancing interactivity and usability.
·Durability
Operating temperatures range from -20 to +70ºC, ensuring reliable performance in various conditions.
Applications
Reaper’s advanced technology makes this display suitable for Industrial Equipment, Medical Devices, Home Intelligent Devices, Digital Consumers, Video Game Devices, and Instruments.
